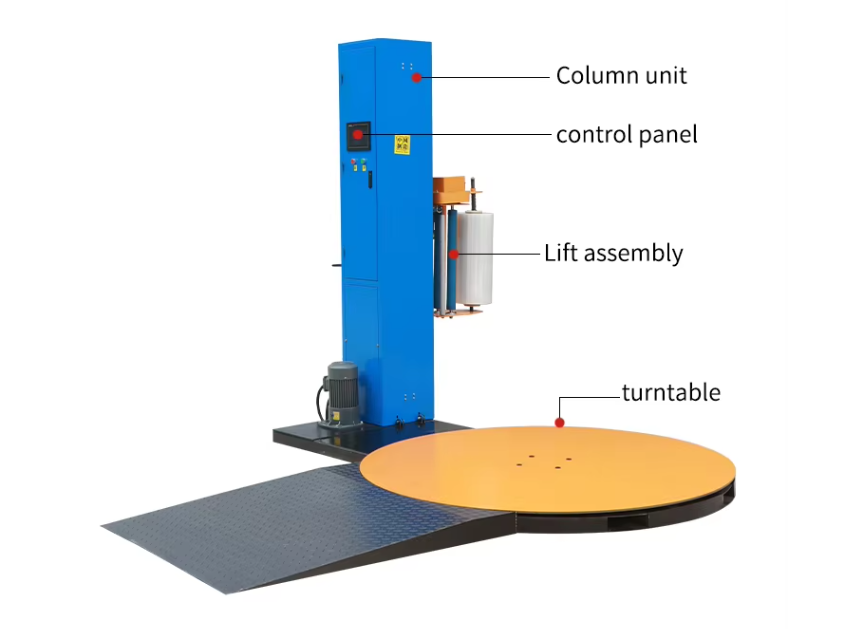

Stretch Wrapping Machine
CASSMAN
Take the manual labor and guesswork out of pallet wrapping. Our machine is equipped with a PLC (Programmable Logic Controller) and operated via an intuitive touch screen interface, giving you complete control over the wrapping process.
Customizable Wrap Cycles: Easily set the number of top and bottom wrap layers, as well as the total number of cycles.
Over-Wrap Function: An adjustable "over-wrap" timer ensures the top of the load is perfectly secured.
Automatic Turntable Reset: The turntable automatically returns to its home position after each cycle, ready for fast loading and unloading.
The heart of our machine is its high-performance film delivery system.
Powered Pre-Stretch up to 250%: The powered pre-stretch carriage stretches the film before it's applied to the load. This maximizes film yield, significantly reducing your consumable costs and creating a stronger, more secure wrap with less material.
Adjustable Speeds: Independently control the film carriage's ascent and descent speed, as well as the film dispensing speed, to match any load requirement.
Effortless Film Loading: The user-friendly "follow-up" mechanism allows for quick and simple film roll changes.
Engineered for durability and consistent performance in demanding industrial environments.
Dual Chain Lift System: The film carriage is lifted and lowered by a robust dual-chain drive, ensuring smooth, stable, and reliable operation without wobble.
Variable Speed Turntable: The turntable speed is fully adjustable from 0 to 12 RPM via a frequency inverter, allowing for a gentle start and stop to protect unstable loads.
High Load Capacity: The massive 1650mm diameter turntable is built to handle pallets up to 1200 x 1200 mm and weighing up to 2000 kg.
| Parameter | Specification |
|---|---|
| Max Load Dimensions (L x W) | (700-1200)mm × (700-1200)mm |
| Max Wrapping Height | 2000mm (Min: 500mm) |
| Max Load Weight | 2000 kg |
| Turntable Diameter | 1650 mm |
| Turntable Height | 80 mm (Low Profile) |
| Turntable Speed | 0 - 12 RPM (Adjustable, VFD controlled) |
| Film Pre-Stretch Ratio | Up to 250% (Powered) |
| Control System | PLC with Touch Screen HMI |
| Mast Drive | Dual Chain Drive |
| Applicable Film Type | 15-35μm Pre-Stretch Machine Film (25μm recommended) |
| Power Supply | 220V (Please inquire for other standards) |
| Total Power | Approx. 1.5 kW |
| Machine Weight | Approx. 500 kg |
Stop wrapping by hand. Invest in a solution that delivers speed, consistency, and significant cost savings. Our automatic stretch wrapper is the reliable workhorse your warehouse needs.
Contact us today for a detailed quotation, to see a video demonstration, and to learn how you can improve your end-of-line packaging.
