Automatic Pallet Wrapper | High-Efficiency Stretch Wrap Machine

Revolutionize Your End-of-Line Packaging with Unmatched Efficiency and Reliability

Eliminate the bottlenecks, high labor costs, and inconsistent results of manual wrapping. Our Automatic Pallet Wrapping Machine is a robust, intelligent solution engineered to protect your goods, streamline your operations, and deliver a rapid return on investment. Secure every shipment perfectly, every time.

How It Works: Fully Automated, Unattended Operation

Our system achieves true "walk-away" automation through intelligent process control:

1. A forklift or AGV places the palletized load onto the turntable.

2. A photoelectric sensor automatically detects the load and positions it.

3. The operator sets key parameters (wrap cycles, tension, speed) via a user-friendly touchscreen interface.

4. The wrapping cycle begins: the turntable rotates while the film carriage ascends and descends along the mast, applying stretch film with a pre-stretch system.

5. Upon completion, the film is automatically cut and pressed against the load, creating a clean, secure finish.

Key Features & Benefits That Drive Your Business Forward:

• Drastic Efficiency Gains: A single automatic wrapper can process 15-40 pallets per hour—5 to 8 times faster than manual wrapping—and is capable of 24/7 continuous operation.

• Significant Cost Reduction: The advanced pre-stretch system elongates film by up to 250%, saving 30-50% on consumable costs. Furthermore, one machine can replace 2-3 packaging workers, dramatically reducing labor expenses.

• Superior Packaging Quality: PLC-controlled tension and uniform film overlap ensure consistent, tight wrapping. This prevents load shifting and damage during transit, making it ideal for high-value goods like precision instruments and electronics.

• Comprehensive Safety Protection: Designed to meet rigorous industrial safety standards, each machine is equipped with emergency stop buttons, overload protection, and other safety features to protect your operators.

• Powerful Compatibility: Our machines are highly adaptable, compatible with multiple pallet standards (e.g., 800×1000mm, 1200×1000mm) and various film materials, including standard PE stretch film, anti-static film, and oxygen-barrier film.

Our Machine Portfolio: Solutions for Every Need

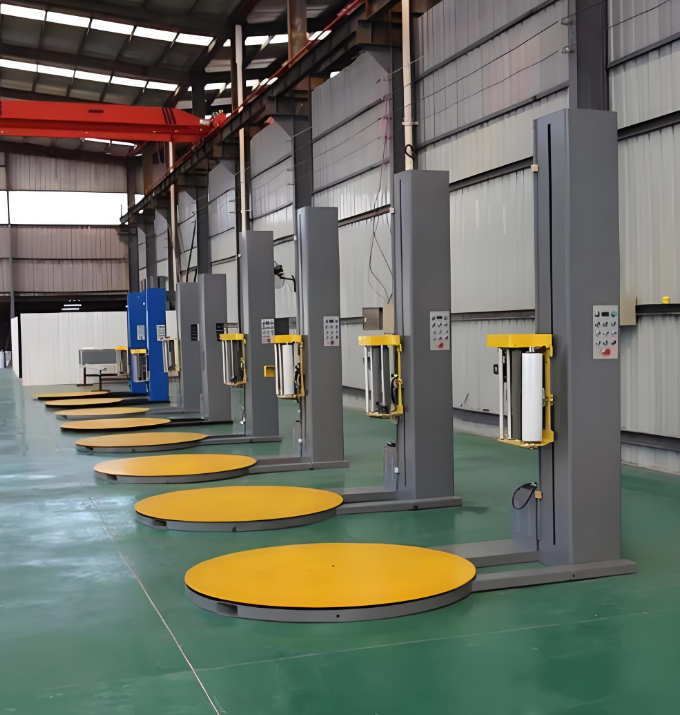

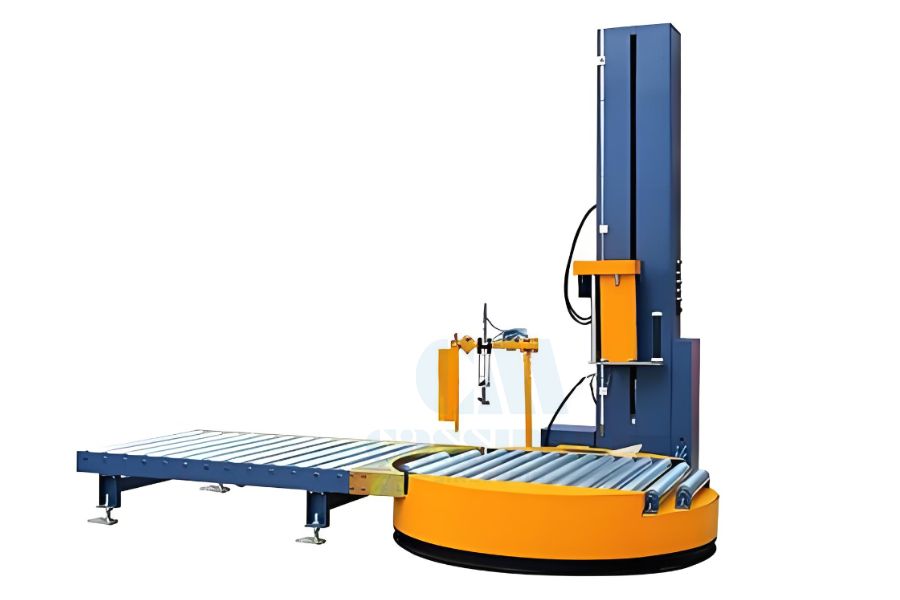

• Turntable Pallet Wrapper: The industry workhorse. Features a 250% pre-stretch film carriage, dual-chain lifting mast, and PLC control. The "M" style turntable allows for easy loading/unloading with a hand pallet truck. Capacity: 20-40 pallets/hour.

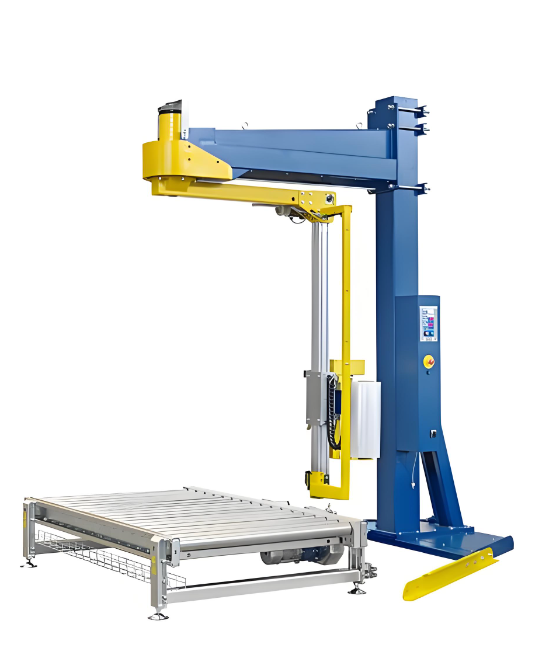

• Rotary Arm Wrapper: The high-speed solution for heavy or unstable loads that cannot rotate. With speeds up to 45 RPM, it can wrap up to 90 pallets per hour. Features a touch-panel with 10 programmable wrapping procedures.

Technical Specifications (Example Model: T1650FM Turntable Wrapper)

Proven Applications Across Industries

• Logistics & Warehousing: Perfect for securing e-commerce shipments and protecting goods from dust and moisture.

• Manufacturing: Essential for factory-exit packaging of auto parts, home appliances, and other finished goods.

• Food & Beverage: Ideal for wrapping cases of bottled water, beverages, and frozen foods, with food-grade film compatibility.

• Chemical & Building Materials: Provides high-tension wrapping to prevent spillage from drums and protect materials like tiles from damage.
