Heads Keg Filler
Cassman

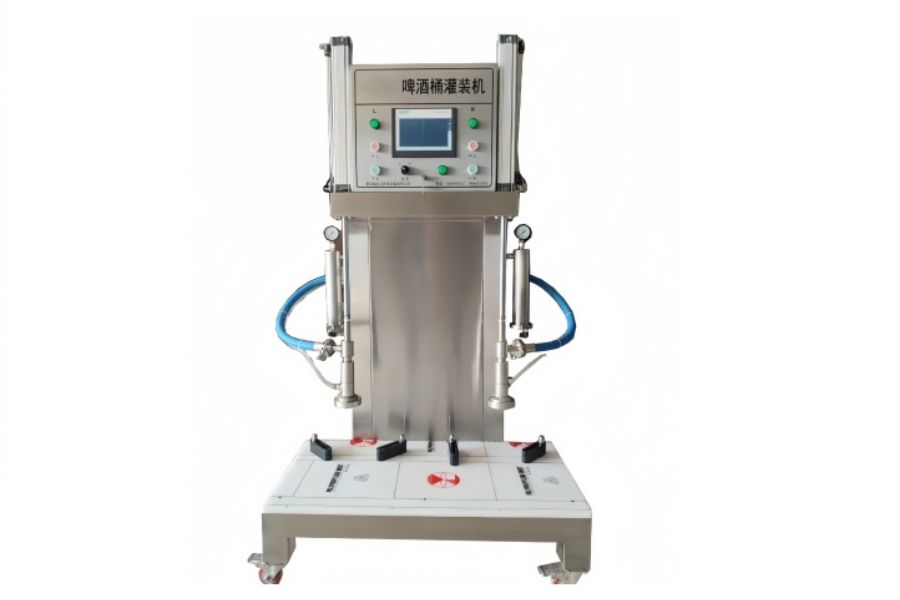

The Cassman Semi-Automatic Keg Filler is the ideal solution for small to medium-sized breweries looking to enhance their packaging workflow. This machine is engineered for reliability, ease of use, and consistent performance, allowing you to fill up to 50 kegs per hour. Its upright filling method and compact footprint make it a seamless addition to any production space.
Efficient Production: With a capacity of 50 kegs per hour, this filler significantly speeds up your packaging process compared to manual methods.
Compact Footprint: Measuring just 1000mm x 750mm, the machine is designed to fit into facilities where space is at a premium.
User-Friendly Design: Features a comfortable working table height (265mm) and straightforward controls for easy operation.
Upright Filling Method: Employs a standard upright filling technique, ensuring a familiar and reliable process.
Durable Construction: Built for longevity and consistent performance in a demanding brewery environment.
Below are the detailed specifications for the Semi-Automatic Keg Filler. Please ensure your facility's utilities meet these requirements for optimal performance.
Main Specifications & Dimensions
| Feature | Specification |
|---|---|
| Working Table Size | 1000mm × 500mm |
| Working Table Height | 265mm |
| Overall Machine Dimensions | 1000mm × 750mm × 1750mm |
| Maximum Cylinder Stroke | 400mm |
| Net Weight | 82.5 Kg |
| Production Capacity | 50 kegs / hour |
| Filling Method | Upright Filling |
Required Technical Parameters
| Parameter | Required Pressure / Voltage |
|---|---|
| Beer Pressure | 0.2～0.3 Mpa |
| Air Pressure | 0.6～0.8 Mpa |
| CO2 Pressure | 0.2～0.3 Mpa |
| Cleaning Water Pressure | 0.2～0.3 Mpa |
| Cylinder Valve Pressure | 0.4～0.5 Mpa |
| CO2 Filling Pressure Valve | 0.15～0.2 Mpa |
| Power Voltage | Single-phase AC 220V 50Hz |
This Semi-Automatic Keg Filler offers the perfect balance of performance, size, and cost.
Contact us today for a quote and to discuss how this machine can fit into your operations!
