High-Efficiency Continuous Column Still for Distillation

Operating Principle

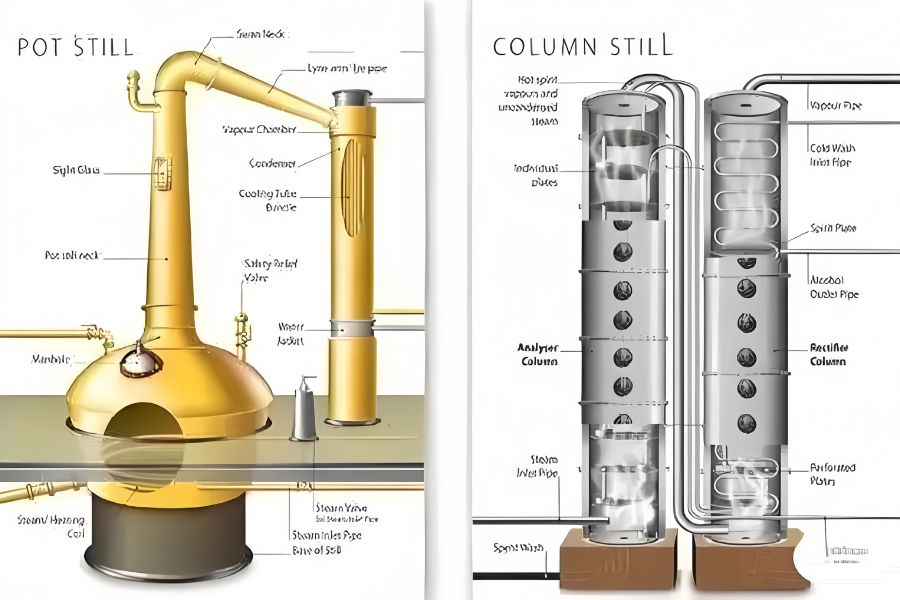

A column still, also known as a continuous or Coffey still, separates components of a liquid mixture based on their different boiling points through a process of fractional distillation.

The liquid mixture (wash/mash) is fed into the middle section of the column. A heating unit at the base of the still heats the mixture, causing the lighter components (those with lower boiling points, like ethanol) to vaporize and rise as a gas. The heavier components (those with higher boiling points, like water) remain in a liquid state.

Inside the column, packing material or a series of perforated plates (trays) provide a large surface area for gas-liquid contact. As the hot vapor rises, it comes into contact with the cooler, descending liquid. This interaction causes a continuous cycle of partial vaporization and partial condensation.

With each cycle, the rising vapor becomes progressively enriched with the lighter components, while the descending liquid becomes concentrated with the heavier components. This process effectively separates the mixture, with the highly concentrated, light-component vapor exiting from the top of the column, and the heavy-component liquid being discharged from the bottom.

Key Characteristics

Advantages:

• High Distillation Efficiency: The multi-stage separation process allows for a very precise and thorough distillation.

• Continuous Operation & Large Capacity: Unlike pot stills which operate in batches, column stills can run continuously, making them ideal for large-scale production.

• Relatively Low Energy Consumption: The heat exchange between the rising vapor and descending liquid makes the process more energy-efficient compared to simple distillation.

• Single-Run High-Proof Production: Capable of producing very high-purity, high-alcohol-by-volume (ABV) spirits in a single pass.

• Clean & Smooth Product Profile: The resulting distillate is typically very pure, with a clean aroma and a smooth, refined taste.

Disadvantages:

• Higher Initial Investment: The equipment cost for a column still is significantly greater than for a basic pot still.

• Complex Structure: The internal design, including trays or packing, is more intricate and requires sophisticated engineering.

• Requires Skilled Operation: Proper operation, maintenance, and management demand a higher level of technical expertise and professionally trained personnel.
