Keg Washer & Filler | 50 Kegs/Hour

Maximize your floor space and streamline your packaging line with our All-in-One Keg Washer & Filler. This innovative machine combines a complete, multi-stage cleaning and sanitizing cycle with a precise, counter-pressure filling system in a single compact unit. Process up to 50 kegs per hour from dirty to ready-to-serve, making it the perfect investment for breweries with limited space and high standards.

Availability:



Inquire

Model:
Combined Keg Filler&Washer
Brand:
CASSMAN

Product Description

The Ultimate Space-Saving Kegging Solution

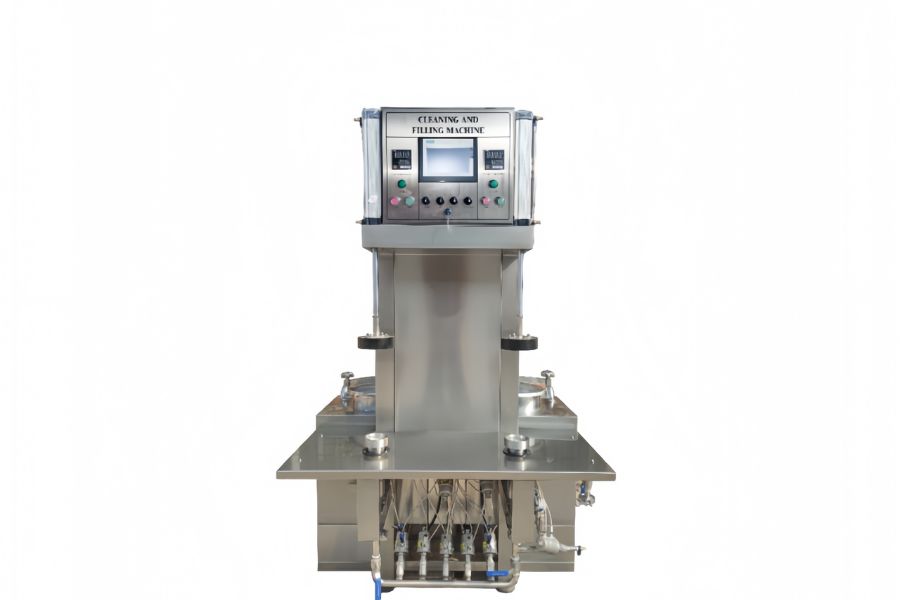

Why invest in two separate machines when one can do it all? The Cassman All-in-One Keg Washer & Filler is the definitive solution for breweries, cideries, and wineries looking to optimize their workflow and floor space. This robust machine seamlessly integrates a full-featured keg washer with a high-performance keg filler, allowing you to execute the entire kegging process on a single, compact station.

Key Features

Integrated All-in-One Design: Combines washing, sanitizing, and filling in one footprint. This significantly reduces equipment costs, saves valuable floor space, and simplifies operator training.
Efficient & Consistent Throughput: Reliably processes 50 kegs per hour, providing a steady workflow from cleaning to filling, ensuring your production targets are met.
Advanced Inverted Processing: Utilizes an inverted (upside-down) position for both cleaning and filling. This method ensures superior draining during the wash cycle and promotes a smoother, low-foam, counter-pressure fill.
Comprehensive Cleaning & Sanitization: Executes a full cleaning regimen, including hot water/caustic rinses, acid/sanitizer cycles, steam sterilization, and CO2 purging to ensure a completely sterile, oxygen-free keg before filling.
Durable, Brewery-Grade Construction: Built to last with a powerful 3KW motor and a net weight of 215Kg, this machine is engineered for the daily demands of a busy production environment.

Technical Specifications

This unit is designed for easy integration into your existing utility hookups.

Main Specifications & Dimensions

Feature	Specification
Function	Washing & Filling (2-in-1)
Working Table Size	1145mm × 515mm
Working Table Height	715mm
Overall Machine Dimensions	1200mm × 1450mm × 2000mm
Net Weight	215 Kg
Power	3 KW
Production Capacity	50 kegs / hour
Cleaning/Filling Method	Inverted (Upside Down)

Required Technical Parameters

Parameter	Required Pressure / Voltage
Air Pressure	0.6～0.8 Mpa
CO2 Pressure	0.4～0.6 Mpa
Cylinder Valve Pressure	0.4～0.5 Mpa
CO2 Filling Pressure Valve	0.15～0.2 Mpa
Air Flush Valve Pressure	0.2 Mpa
Steam Pressure	0.2 Mpa
Power Voltage	AC 380V / 50Hz / 3-Phase

Simplify Your Process, Elevate Your Quality

Invest in efficiency. The All-in-One Keg Washer & Filler is the smartest way to manage your kegging line.

Contact us today to get a quote and optimize your brewery's workflow!

Mobile/Whatsapp/Wechat: +86 18560016154
Email: inquiry@cassmanbrew.com
