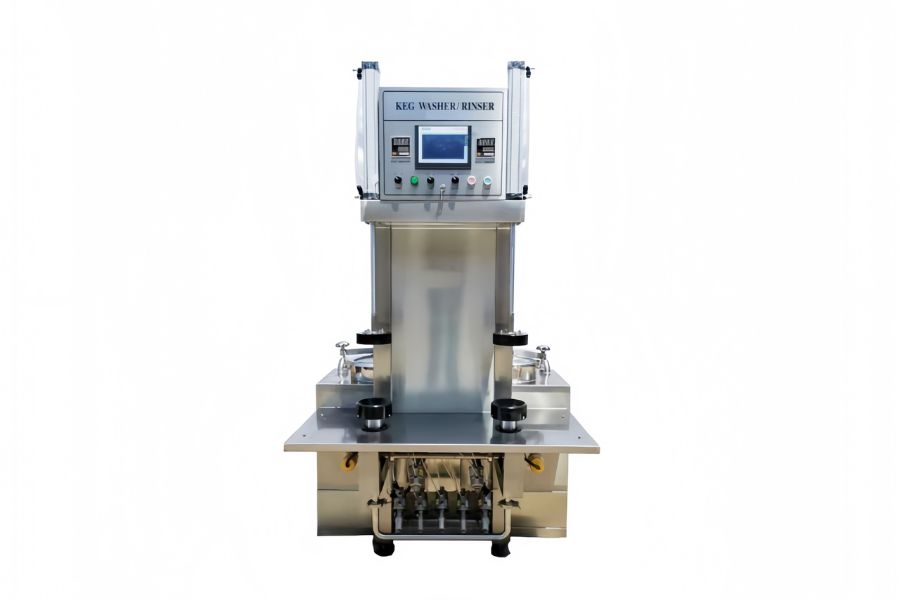

Heads Keg Washer
CASSMAN
The foundation of great beer is uncompromising cleanliness. The Cassman Semi-Automatic Keg Washer is engineered to provide a thorough, reliable, and efficient cleaning process, ensuring your kegs are perfectly sanitized and ready for filling. Designed for durability and performance, this machine is an essential asset for any brewery dedicated to quality.
High-Efficiency Throughput: Capable of processing 50 kegs per hour, this washer keeps your keg inventory clean and ready, preventing bottlenecks in your packaging line.
Thorough Inverted Cleaning: The machine utilizes an inverted (upside-down) cleaning method. This industry-standard technique uses gravity to its advantage, ensuring complete draining of all rinsing and cleaning solutions for superior sanitation.
Robust, Industrial Construction: With a net weight of 224Kg and a powerful 3KW motor, this washer is built from high-quality materials to withstand the demanding environment of a production brewery.
Comprehensive Cleaning Cycle: The process is designed to integrate multiple stages, including water rinsing, caustic washing, and sanitizing, followed by CO2 purging and pressurization to ensure a sterile, oxygen-free environment.
Please review the following specifications to ensure compatibility with your facility's infrastructure.
Main Specifications & Dimensions
| Feature | Specification |
|---|---|
| Working Table Size | 1145mm × 515mm |
| Working Table Height | 680mm |
| Overall Machine Dimensions | 1310mm × 1550mm × 2050mm |
| Maximum Cylinder Stroke | 300mm |
| Net Weight | 224 Kg |
| Power | 3 KW |
| Production Capacity | 50 kegs / hour |
| Cleaning Method | Inverted (Upside Down) |
Required Technical Parameters
| Parameter | Required Pressure / Voltage |
|---|---|
| Air Pressure | 0.6～0.8 Mpa |
| CO2 Pressure | 0.4～0.6 Mpa |
| Cylinder Valve Pressure | 0.4～0.5 Mpa |
| CO2 Filling Pressure Valve | 0.15～0.2 Mpa |
| Air Flush Valve Pressure | 0.2 Mpa |
| Steam Pressure | 0.2 Mpa |
| Power Voltage | AC 380V / 50Hz / 3-Phase |
Don't let keg sanitation be a weak link in your production chain. This Semi-Automatic Keg Washer provides the power and reliability you need.
Contact us today for a quote and to learn more!
