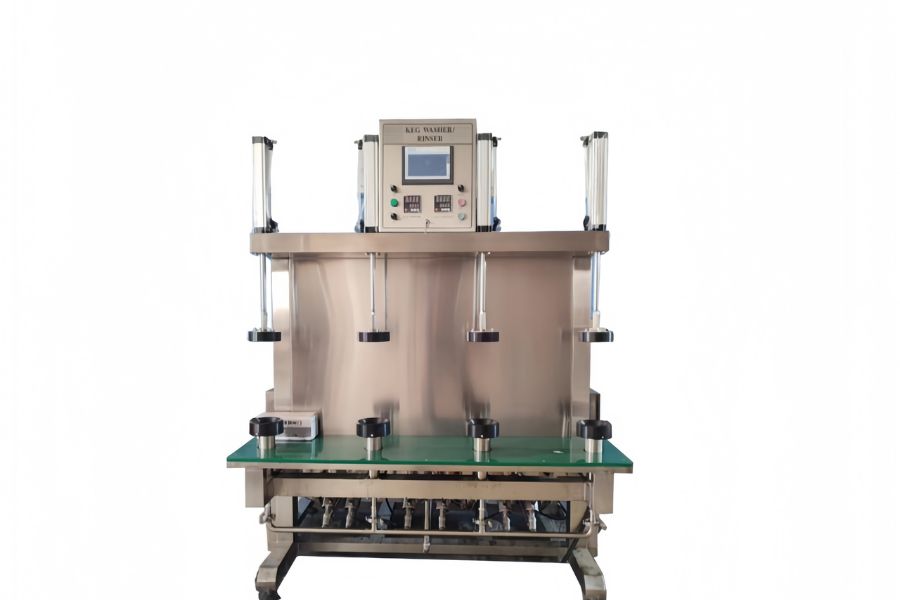

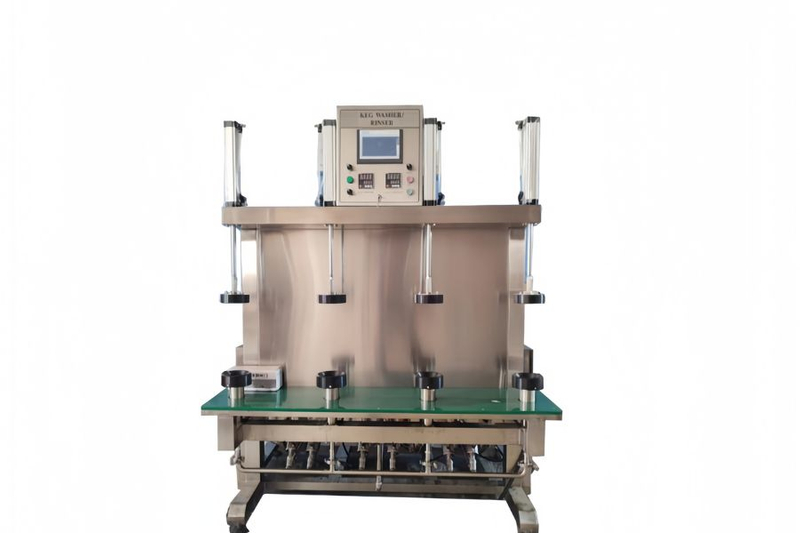

4-Head Keg Washer
Cassman
As your brewery grows, so do the demands on your equipment. The Cassman 4-Head Semi-Automatic Keg Washer is engineered to meet this challenge, providing a significant boost to your cleaning workflow. By processing four kegs in parallel, this machine ensures a constant, reliable stream of perfectly sanitized kegs, allowing you to maintain pace with increased production schedules.
Parallel 4-Head Processing: The machine's core advantage. Clean up to four kegs simultaneously, dramatically improving workflow stability and ensuring a consistent supply of ready-to-fill kegs.
Steady Production Throughput: Delivers a reliable output of 50 clean kegs per hour. This capacity is ideal for supplying a semi-automatic filling line without interruption.
Thorough Inverted Cleaning: Employs the industry-proven upside-down cleaning method, using gravity to ensure complete draining and superior sanitation across all four stations.
Robust, Heavy-Duty Build: Engineered for continuous operation, the machine features a powerful 3KW motor and a solid frame (224Kg) to handle the rigors of a high-volume production environment.
Comprehensive Sanitization Cycle: Integrates all essential cleaning steps—from initial rinse to caustic wash, final sanitization, and CO2 purging—to guarantee sterile, ready-to-fill kegs.
This unit requires a 3-phase power supply and standard brewery utilities. Please verify the specifications below.
Main Specifications & Dimensions
| Feature | Specification |
|---|---|
| Workstations | 4 Heads |
| Working Table Size | 1145mm × 515mm |
| Working Table Height | 680mm |
| Overall Machine Dimensions | 1310mm × 1550mm × 2050mm |
| Net Weight | 224 Kg |
| Power | 3 KW |
| Production Capacity | 50 kegs / hour |
| Cleaning Method | Inverted (Upside Down) |
Required Technical Parameters
| Parameter | Required Pressure / Voltage |
|---|---|
| Air Pressure | 0.6～0.8 Mpa |
| CO2 Pressure | 0.4～0.6 Mpa |
| Cylinder Valve Pressure | 0.4～0.5 Mpa |
| CO2 Filling Pressure Valve | 0.15～0.2 Mpa |
| Air Flush Valve Pressure | 0.2 Mpa |
| Steam Pressure | 0.2 Mpa |
| Power Voltage | AC 380V / 50Hz / 3-Phase |
Boost your efficiency and ensure product integrity with a machine built for growth.
Contact us today for a detailed quote and consultation!
