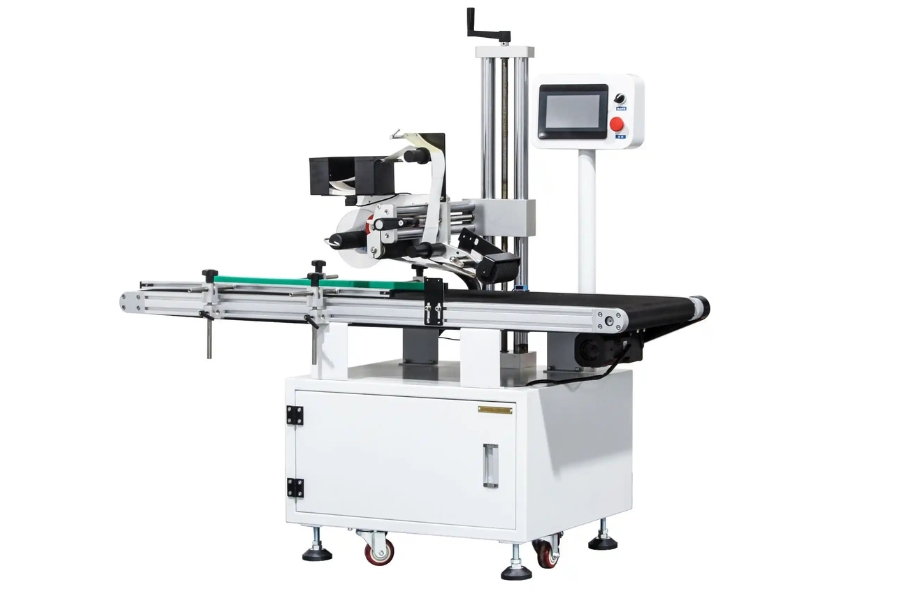

Printer and Labeller
CASSMAN
Why use two separate machines when one can do it all? Our integrated system combines a high-precision, automatic positioning labeler with a powerful laser coder. This not only saves valuable floor space but also simplifies your workflow, reduces setup time, and minimizes potential bottlenecks in your production line.
With an adjustable speed of 1,000 to 3,000 bottles per hour (35-50 bottles per minute), this machine hits the sweet spot for growing businesses. It provides the automation needed to scale up from manual labeling without the overwhelming complexity or footprint of large industrial systems. It is the ideal investment for craft breweries, wineries, kombucha makers, condiment producers, and more.
High-Accuracy Application: Achieves a labeling accuracy of ±1mm, ensuring your brand looks consistent and professional on every product (note: accuracy is independent of product and label manufacturing tolerances).
Wide Range of Bottle Sizes: Easily adjusts to handle round bottles with diameters from 15mm to 100mm and heights from 25mm to 150mm.
Flexible Label Compatibility: Works with a broad spectrum of label sizes, accommodating lengths from 20mm to 300mm and widths from 20mm to 150mm.
Permanent Laser Coding: The integrated laser printer permanently etches batch codes, dates, serial numbers, or other vital information onto your bottles, ensuring complete traceability.
| Parameter | Specification |
|---|---|
| Functionality | Automatic Round Bottle Labeling & Laser Coding |
| Production Speed | 1,000 - 3,000 bottles/hour (35 - 50 pcs/min) |
| Labeling Accuracy | ±1mm (excluding product & label tolerances) |
| Applicable Bottle Diameter | ø 15mm - 100mm |
| Applicable Bottle Height | 25mm - 150mm |
| Applicable Label Length | 20mm - 300mm |
| Applicable Label Width | 20mm - 150mm (backing paper width) |
| Overall Dimensions (L×W×H) | Approx. 1400mm × 1100mm × 1500mm |
| Power Supply | 220V / 50HZ (Please inquire for other standards) |
| Total Weight | Approx. 222 Kg |
Ready to upgrade your labeling and coding process? This all-in-one machine offers the reliability, precision, and efficiency you need to grow your brand.
Contact us for a personalized quote, to see a video of the machine in action, or to discuss how this solution can be integrated into your production line.
