Direct Fired Brewhouse System

Harness the raw power and economy of gas with our Direct Fired Brewhouse. Engineered for a faster, more vigorous boil, it features superior insulation and complete burner flexibility, including custom-fitting for your preferred brand.

Availability:



Inquire

Model:
CM-500L, CM-1000L, CM-3BBL, CM-5BBL, CM-7BBL, CM-10BBL, CM-15BBL
Brand:
Cassman

Product Description

Unleash the Power of the Flame: The Cassman Direct Fired Brewhouse

Embrace the preferred heating method of many American and South American brewers. The Cassman Direct Fired Brewhouse is engineered for those who demand power, speed, and cost-efficiency. By utilizing natural gas, this system delivers a faster, more vigorous boil than electric systems, giving you more control over your wort and potentially reducing energy costs.

Key Features for a Superior Brew:

Powerful & Rapid Heating: Get to your boil faster and maintain a strong, rolling action with ease. Direct fire heating is not only quicker than electric but often more cost-effective, making it a smart choice for production-focused breweries.
Superior Heat Insulation: Efficiency and safety are paramount. Our direct-fired tuns are insulated with high-performance aluminum silicate, a material renowned for its excellent thermal retention. This keeps the heat focused on your wort, not escaping into your brewery.
Complete Burner Flexibility: We give you total control over your core equipment.

Standard: Comes equipped with our reliable and proven Chinese-made burners.
Premium Options: Choose from top international brands from Italy, Canada, or the USA.
Bring Your Own: Already have a preferred burner? Provide us with the interface dimensions, and we will custom-fabricate the port on your vessel for a perfect fit.

Turnkey & Safe by Design: Each system is delivered as a comprehensive package, including a dedicated exhaust chimney for proper ventilation and a professional burner controller for safe and precise operation.
Fully Customizable for Your Brewery: From vessel combination and layout (2, 3, or 4-vessel) to the level of automation (semi-auto PID or fully-automated Siemens PLC), we build the brewhouse that fits your exact needs.

Technical Specifications

Feature	Details
Available Models	CM-500L, CM-1000L, CM-3BBL, CM-5BBL, CM-7BBL, CM-10BBL, CM-15BBL
Material	Stainless Steel 304/316, Optional Red Copper Cladding
Heating Method	Direct Fire (Natural Gas)
Application	Small to Medium-Sized Craft Breweries
Vessel Combination	Fully Customizable (2, 3, 4-Vessel, Combi-tanks)
Automation	Semi-Automatic (PID) / Fully-Automatic (PLC Siemens)
Voltage	380V/3ph/50Hz, 220V/3ph/60Hz (Customized)
Connections	Tri-Clamp, NPT, RJT
Included Accessories	Pumps, Heat Exchanger, Work Platform, Pipelines, Wort Oxygenation Device, Burner Controller, Exhaust Chimney

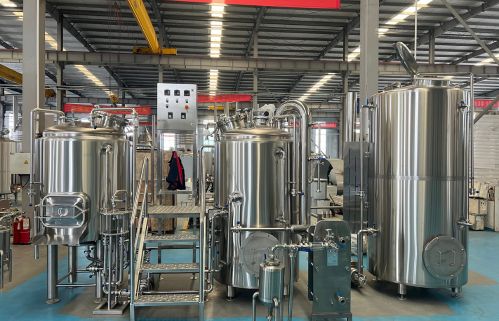

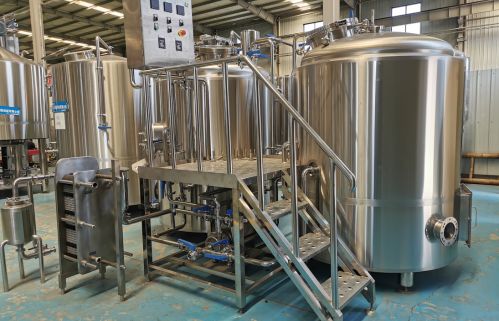

15bbl Direct fired brewhouse	5bbl direct fired brewhouse

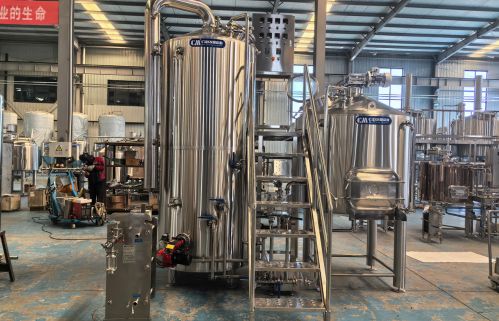

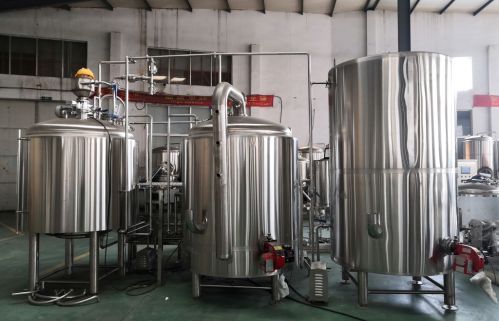

10bbl direct fired kettle+hot liquor tank	Customized brewhouse

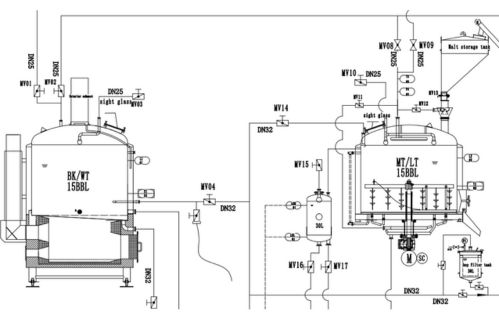

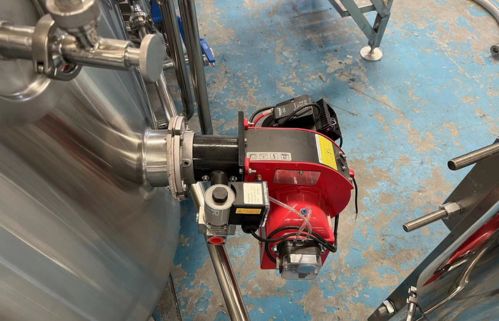

Direct fired brewhouse flow chart	Burner

Build Your Brewery's Powerful Core

Cassman provides certified, high-performance brewing solutions to help you succeed. Let our experts help you configure the ideal direct fired brewhouse for your production goals.

Contact us for a personalized consultation and competitive quote.
