CM-1000L
Cassman

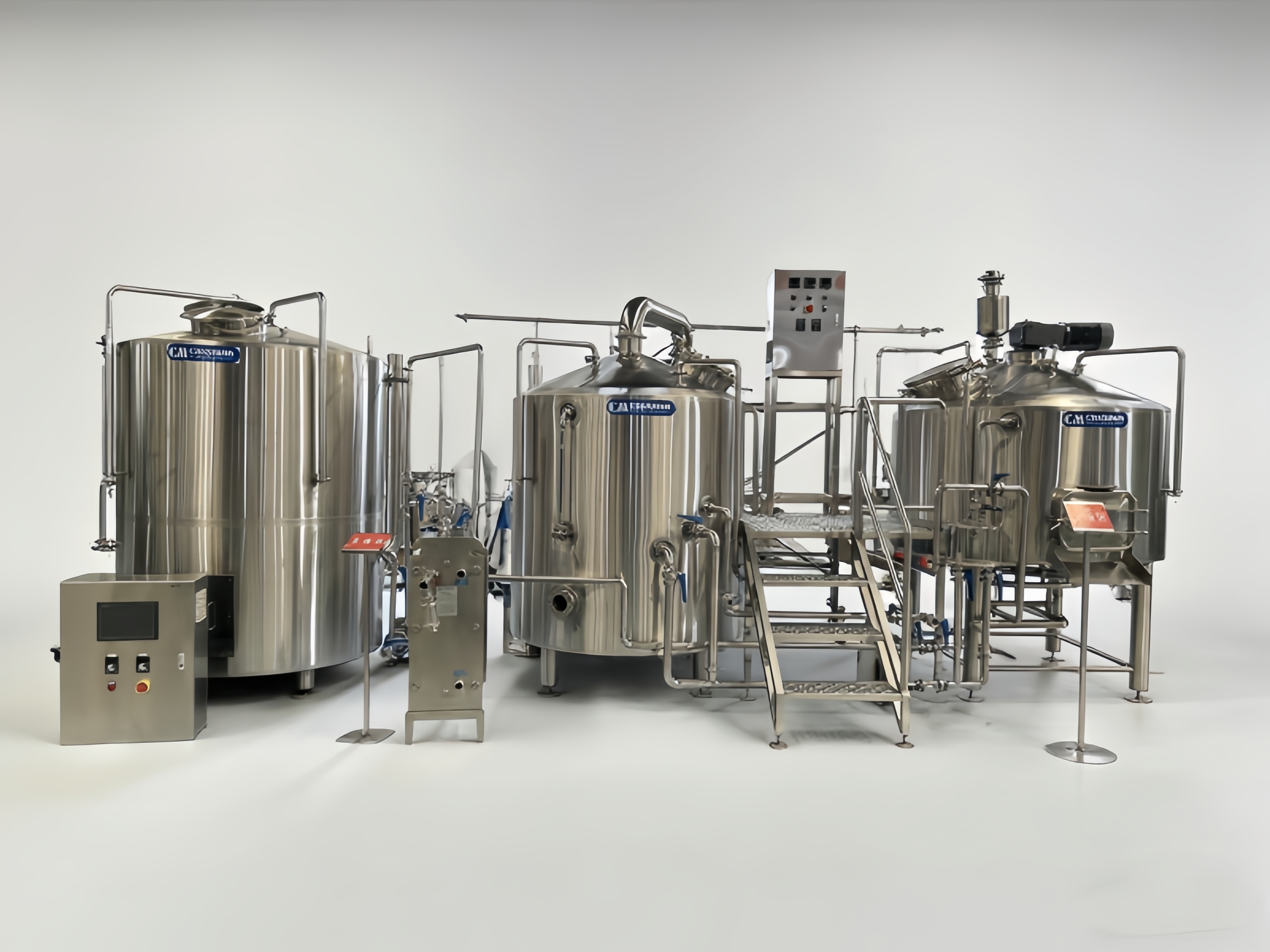

For established breweries and large-scale startups where steam is not an option, the Cassman 1000L Electric Brewhouse provides a robust, efficient, and professional alternative. We have engineered this system to deliver the power and control you need to produce 1000L of high-quality wort batch after batch, all without the need for a separate steam generator.
Intelligent Electric Heating: We understand the power demands of a 1000L system. The Kettle and Hot Liquor Tank feature multiple groups of heating elements. This allows for separate, staged control, enabling you to manage your total power load effectively while ensuring vigorous and efficient heating.
Advanced Mash Control with HERMS Option: Elevate your brewing precision. We can integrate a dedicated stainless steel coil into the hot liquor pipeline, creating a Heat Exchange Recirculating Mash System (HERMS). This gives you gentle, precise, and consistent control over your mash temperature profile.
Professional 3-Vessel Configuration: This is a no-compromise system designed for serious production. The standard layout includes:
Mash/Lauter Tun: Insulated, with a VFD-controlled motor, rake system, precision-milled false bottom, and sight glass.
Kettle/Whirlpool Tun: Insulated, with a tangential inlet for an effective whirlpool and a vorlauf port.
2000L Hot Liquor Tank (HLT): Insulated, with ample capacity to support back-to-back brewing.
Complete Turnkey System: Your brewhouse arrives with everything you need to start brewing. This includes a full work platform with stairs and railings, VFD-driven sanitary pumps, a high-efficiency heat exchanger, a wort oxygenation assembly, and all necessary pipelines and butterfly valves.
Centralized PLC/PID Control: The brain of your brewery. The control panel provides centralized command over pumps, motors, and temperatures, ensuring your brew day is repeatable, efficient, and easy to manage.
|
|

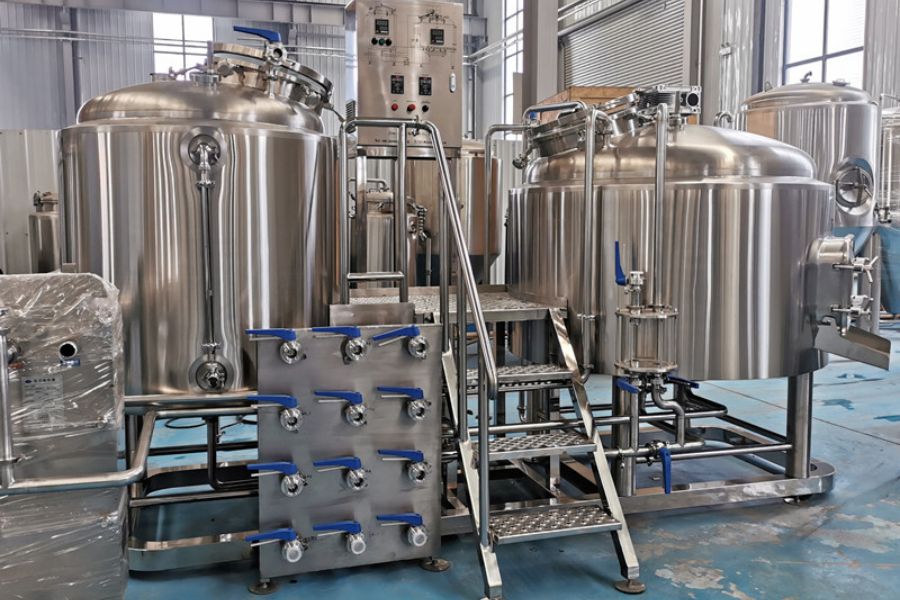

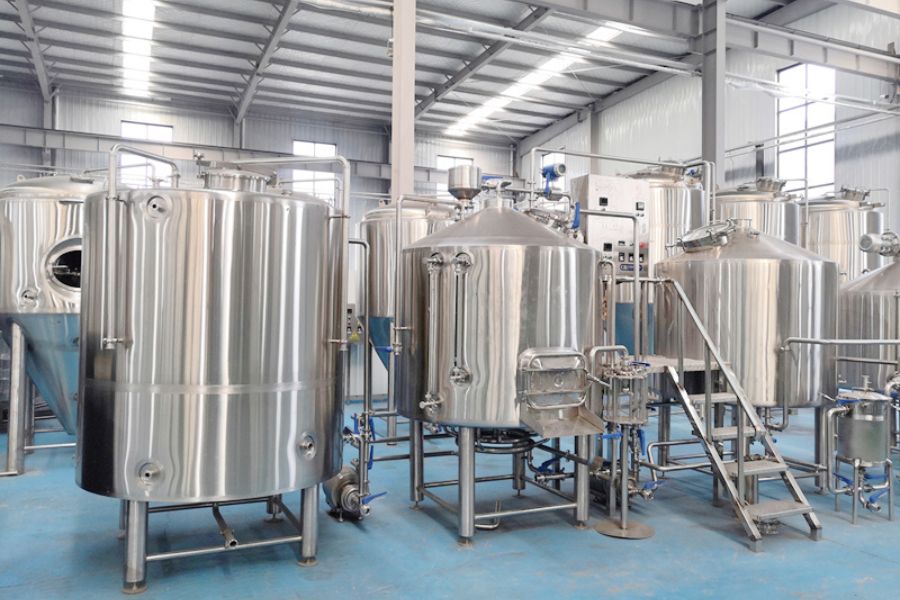

| 1000L Brewhouse with 2000L HLT | Skid Mounted Brewhouse |
|
|

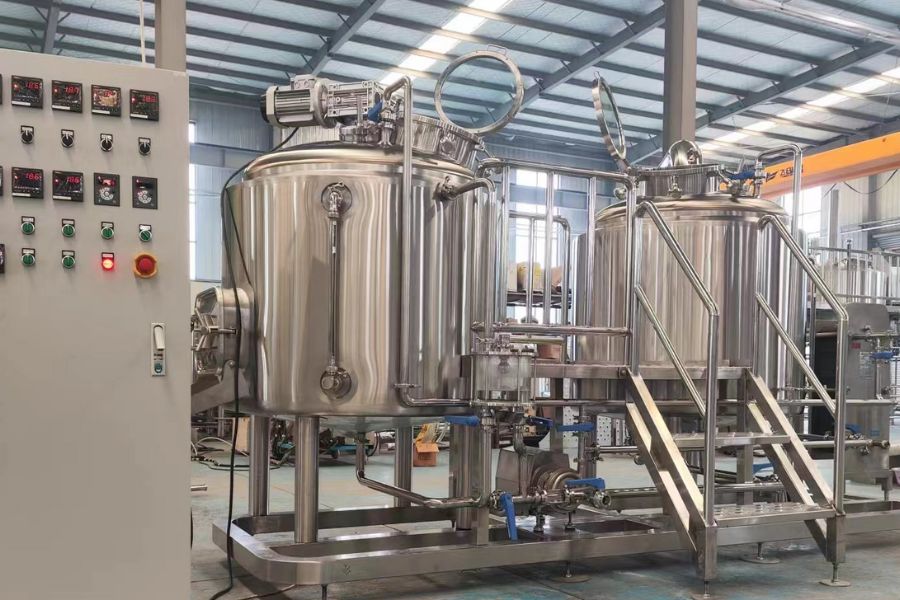

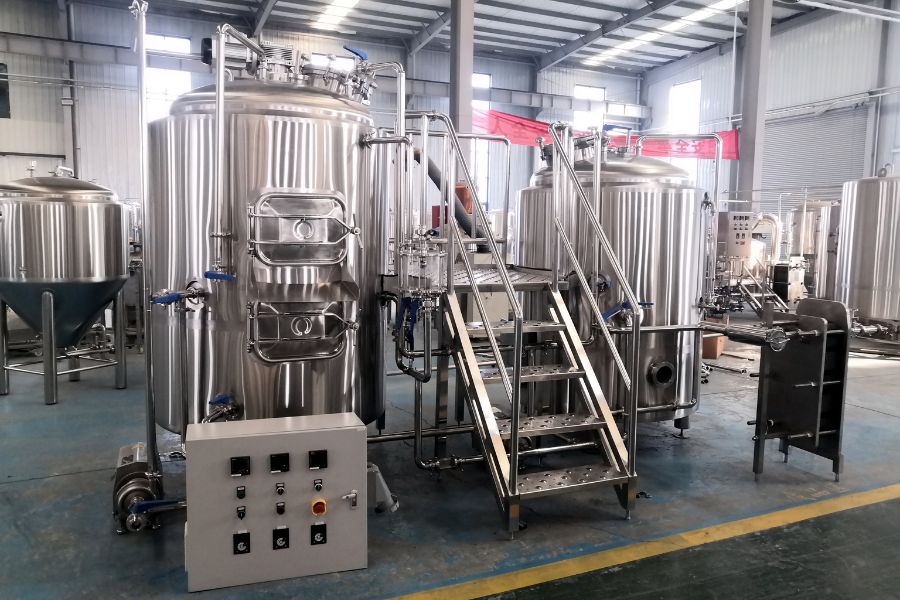

| 1000L Two vessels Brewing System | Germany Style 1000L Brewing System |
| Feature | Details |
|---|---|
| Model | CM-1000L |
| Batch Capacity | 1000 Liters |
| Configuration | 3-Vessel: Mash/Lauter + Kettle/Whirlpool + 2000L HLT |
| Material | Stainless Steel 304 (Optional: Copper exterior) |
| Heating Method | Electric Heating (with separate group control) |
| Power | 60-72KW |
| Voltage | 380V/3ph/50Hz, 220V/3ph/60Hz (Customizable) |
| Control System | PLC / PID |
| Connections | Tri-Clamp, NPT, RJT options available |
| Included Accessories | VFD Pumps, Heat Exchanger, Work Platform, Pipelines, Wort Oxygenation Device |
Cassman is dedicated to providing high-quality, certified (TUV, ISO, CE-PED) brewing equipment that meets the demands of brewers worldwide. We partner with you to design a system that fits your space, your process, and your vision.
Contact our team today to discuss your 1000L electric brewhouse project. We'll provide a detailed quote and expert guidance to help you achieve your production goals.
