Single vessel brewing
Cassman
Brew Smarter, Not Bigger.

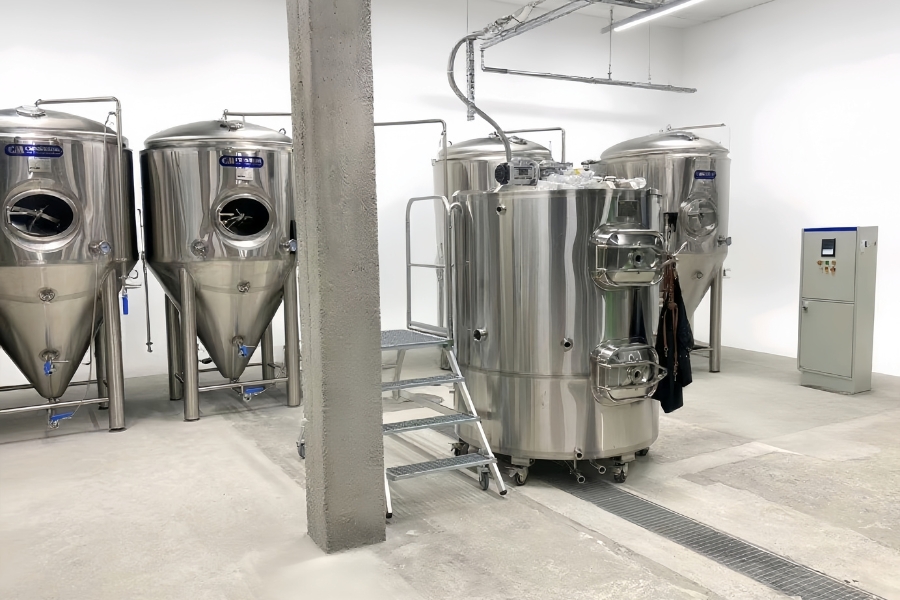

The Cassman single vessel brewhouse revolutionizes the brewing process by integrating all essential functions into one cleverly designed piece of equipment. The system is ingeniously separated into two vertical sections:
Upper Vessel (Mash & Lauter Tun): This section is dedicated to mashing and lautering. It features a top-mounted agitator with a variable frequency drive (VFD) for precise mixing control, a high-efficiency wedge wire filter for clear wort separation, and an integrated sparging and Clean-in-Place (CIP) system.
Lower Vessel (Kettle & Whirlpool): The wort is gravity-fed to the lower vessel, which functions as the brew kettle and whirlpool. It can be configured with either electric heating elements or a steam jacket. A tangential inlet pipe facilitates a strong, effective whirlpool for excellent trub separation.
This all-in-one design dramatically reduces the required floor space. A 300L system, for example, occupies only about 1.5 square meters. With its straightforward installation, user-friendly operation, and integrated CIP capabilities, this brewhouse is an incredibly cost-effective solution for producing high-quality craft beer.
Available in a range of standard sizes (100L, 200L, 300L, 500L, 1000L), this brewhouse can be paired with any number of fermenters to match your production goals.
| Feature | Specification / Detail |
|---|---|
| Material | SUS 304 Stainless Steel (Optional Red Copper Cladding) |
| Insulation | 80mm thick, high-density polyurethane insulation. |
| Gross Capacity | 100L, 200L, 300L, 500L, 1000L (and custom sizes). |
| Welding | 100% TIG (Tungsten Inert Gas) welding with pure argon gas shield for sanitary, robust seams. |
| Access | Two dedicated manholes for easy observation, ingredient dosing, and grist removal. |
| Agitator | Top-mounted rake/mixer with VFD for variable speed control. |
| Filtration | Integrated wedge wire false bottom in the lauter tun for efficient wort filtration. |
| Heating | Electric heating elements or steam jacket options available. |
| Cleaning | Fully integrated Clean-in-Place (CIP) piping and spray balls in both vessels. |
| Valves & Fittings | Complete set of sanitary Stainless Steel 304 butterfly valves and fittings (DIN or Tri-Clamp standards). |
| Support | 4 heavy-duty, adjustable stainless steel legs for leveling. |
Brewpubs and Restaurants
Startup Breweries
Pilot Systems for Recipe Development
Breweries with Limited Space
Contact us today to get a quote and learn how the Cassman All-in-One Brewhouse can fit your brewing vision and your space.
