2000L / 20BBL Four-Vessel Brewhouse System

1.Product Description

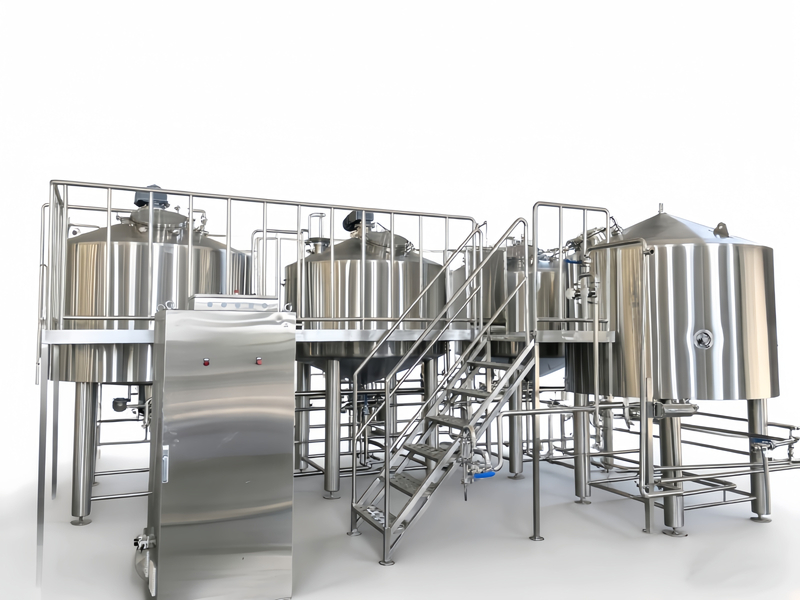

Scale Your Production, Perfect Your Process: The Cassman 2000L Four-Vessel Brewhouse

For the ambitious craft brewery or established microbrewery, efficiency is the key to growth. The Cassman 2000L brewhouse is designed with a dedicated four-vessel configuration (Mash Tun, Lauter Tun, Kettle, and Whirlpool Tun) to eliminate bottlenecks and unlock your brewery's full potential. By allowing you to begin mashing a new batch while the previous one is boiling or whirlpooling, this system empowers you to brew multiple batches per day with precision and consistency.

Every component of this brand-new, high-quality system is engineered for performance. From the certified stainless steel construction to the intelligent process controls, the Cassman 2000L brewhouse is built to be the reliable heart of your commercial brewing operation.

2. Key Features & Specifications

Dedicated Vessels for Unmatched Efficiency:

• Mash Tun:

• Achieve absolute control over your mash profile with an integrated cold/hot water mixing device, complete with a precision temperature sensor and flow meter.

• A built-in grist hydrator ensures uniform moistening of the malt, optimizing enzymatic activity from the very start.

• Lauter Tun:

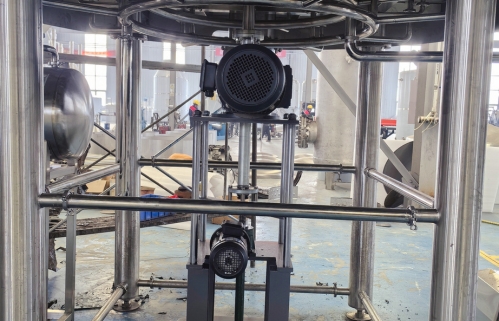

• Maximize your extract yield with an integrated rake system, controlled by a Variable Frequency Drive (VFD) to gently cut and lift the grain bed.

• The high-precision V-wire false bottom (0.7mm gap) ensures crystal-clear wort runoff and boosts production output.

• Features include a wort collection ring and backwash device for superior wort recovery and an external grain-out manway for fast and easy cleaning.

• Kettle & Whirlpool Tun:

• The system separates the boiling and whirlpooling processes for ultimate control. The Kettle is optimized for a rapid, vigorous boil using a low-pressure steam jacket with PLC-controlled temperature.

• The dedicated Whirlpool Tun features a tangential inlet, engineered to create the perfect centrifugal force for highly efficient and compact trub separation.

Superior Construction & Design:

• Premium Materials: All tanks are constructed from certified 304/316 stainless steel, with an internal mirror polish (0.4~0.6μm) ensuring a sanitary, easy-to-clean surface without dead corners.

• High-Efficiency Heating: Standard configuration includes powerful steam heating for high thermal efficiency. Direct fire and electric heating options are also available to suit your facility's needs.

• Advanced Insulation: A thick 80mm rock wool insulation layer minimizes heat loss, reduces energy consumption, and ensures stable process temperatures.

• Customizable Controls: Choose between semi-automatic (PID) or fully automatic (PLC) control systems from leading brands like Siemens and Schneider to match your operational preferences.

• Safe & Ergonomic Platform: The non-slip, perforated work platform provides a safe and secure operational environment, with a design that can be customized to your specific space.

3. Product Parameters

4. Your Partner in Commercial Brewing

The Cassman 2000L brewhouse is more than just equipment; it's a solution designed to grow with your brewery.

Contact us to discuss your project and receive a customized quote for your new four-vessel brewhouse.
