500L / 5BBL Two-Vessel Brewhouse System

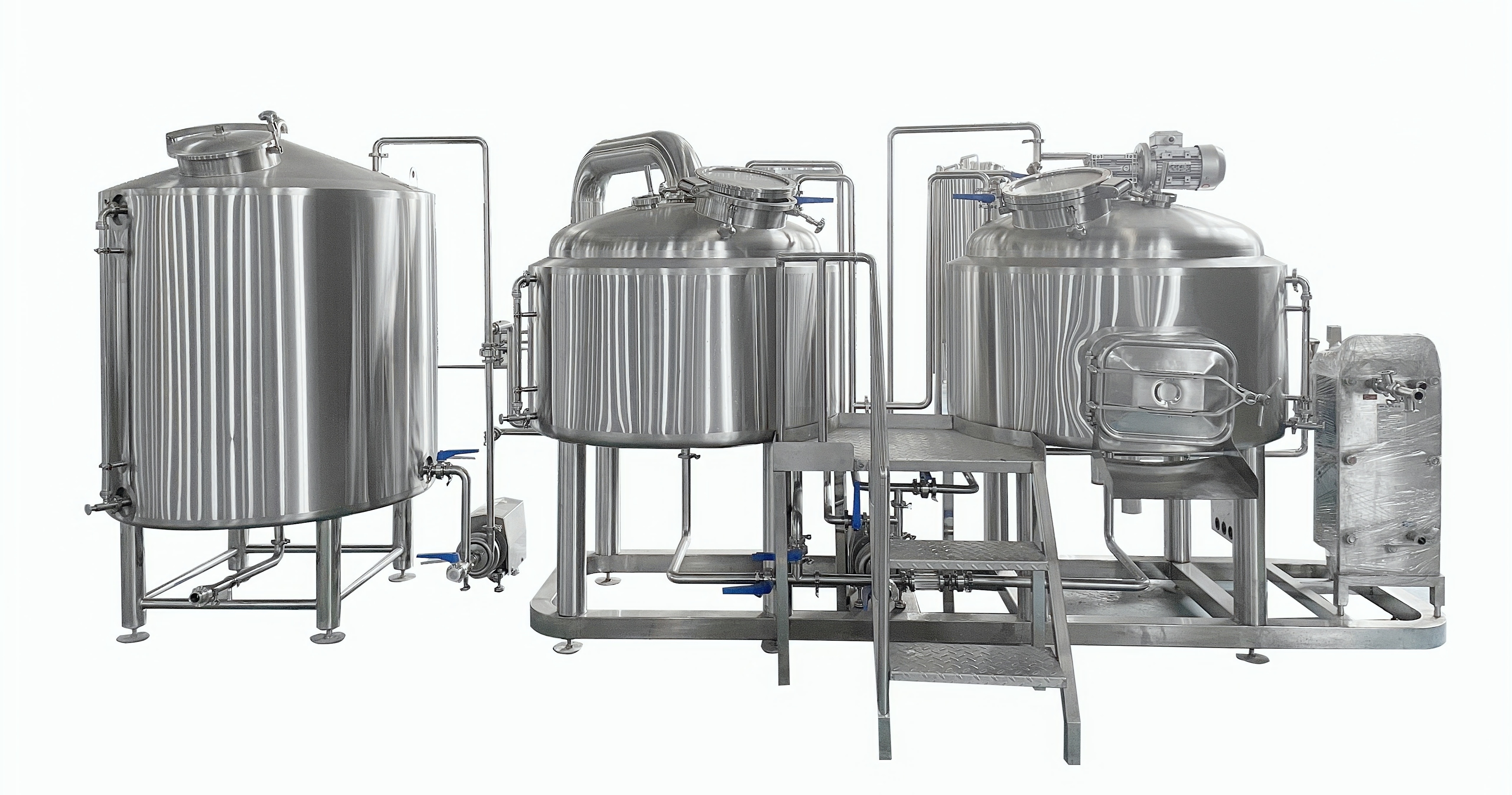

The Heart of Your Brewery: The Cassman 500L (5BBL) Two-Vessel Brewhouse

As a premier manufacturer of brewing equipment, Cassman provides complete, cost-effective turnkey solutions for breweries worldwide. Our 5BBL Two-Vessel Brewhouse is an intelligently designed system that masters the four essential brewing steps—mashing, lautering, boiling, and whirlpooling—in a streamlined configuration.

This system is the optimized choice for breweries where space and efficiency are paramount. By integrating the Mash/Lauter Tun and the Kettle/Whirlpool Tun, we deliver a powerful brewing platform that saves valuable floor space without compromising the quality or volume of your output. It’s the perfect foundation for brewpubs, hotel and restaurant breweries, or dedicated pilot production lines.

Key Features & Design

1. Precision Mashing & High-Efficiency Lautering

• Optimized Grain Hydration: A built-in grist hydrator ensures every grain is uniformly moistened, creating perfect conditions for the mash.

• Accurate Temperature Control: A cold/hot water mixing device, complete with temperature sensors and flow meters, gives you precise command over your mash water.

• Superior Filtration: The V-wire false bottom (0.7mm gap) provides high-accuracy filtration and is fully removable for easy cleaning. Its robust bottom supports guarantee structural stability.

• Efficient Wort Collection: An annular wort collection pipe and under-flush device work together to maximize wort recovery, while a dedicated wort grant allows for clarity checks and protects the sieve plate.

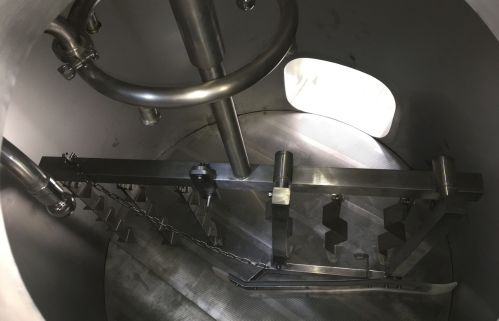

• Automated Raking System: A powerful turbine reducer motor with variable frequency drive (VFD) allows for stepless speed control. An optional rake lifting function is available to adapt to different grain bed depths.

2. Powerful Boiling & Crystal-Clear Whirlpooling

• Efficient Steam Heating: Dimple plate steam jackets optimize heat transfer for a vigorous boil and precise temperature control. A complete safety chain—including pressure gauges, safety valves, and traps—ensures safe operation.

• Clean Brewing Environment: Choose between indoor or outdoor exhaust systems to effectively remove steam, keeping your brewing area clear and safe.

• Effective Hop & Trub Separation: A Y-type hop filter is included to ensure clearer wort is transferred to the fermenter, improving the final quality of your beer.

3. Sanitary Design & Superior Construction

• Premium Stainless Steel: Constructed from food-grade SUS304 stainless steel with an internal mirror polish (Ra ≤ 0.6μm) for ultimate sanitation, corrosion resistance, and durability.

• 100% Sanitary Piping: All piping, elbows, tees, and curves use Tri-Clamp (TRC) connections, allowing for quick disassembly, inspection, and cleaning.

• Total Cleaning Coverage: The system is equipped with sparging arms and double CIP (Clean-in-Place) spraying balls for 360°, dead-angle-free cleaning.

• Superior Insulation: A thick 80mm rock wool insulation layer maintains process temperatures, reduces heat loss, and minimizes energy consumption.

• Safe & Functional Platform: The operator's platform is built from perforated anti-slip steel plates, integrating drainage with safety railings for a secure working environment.

Technical Specifications

Build Your Brewery's Foundation

Choose between a compact skid-mounted frame or a custom layout to fit your space. With options for manual or semi-automated controls, the Cassman 5BBL brewhouse is the versatile, reliable, and efficient core your brewery needs to succeed.
