CMBH-100L, CMBH-200L, CMBH-300L
CASSMAN

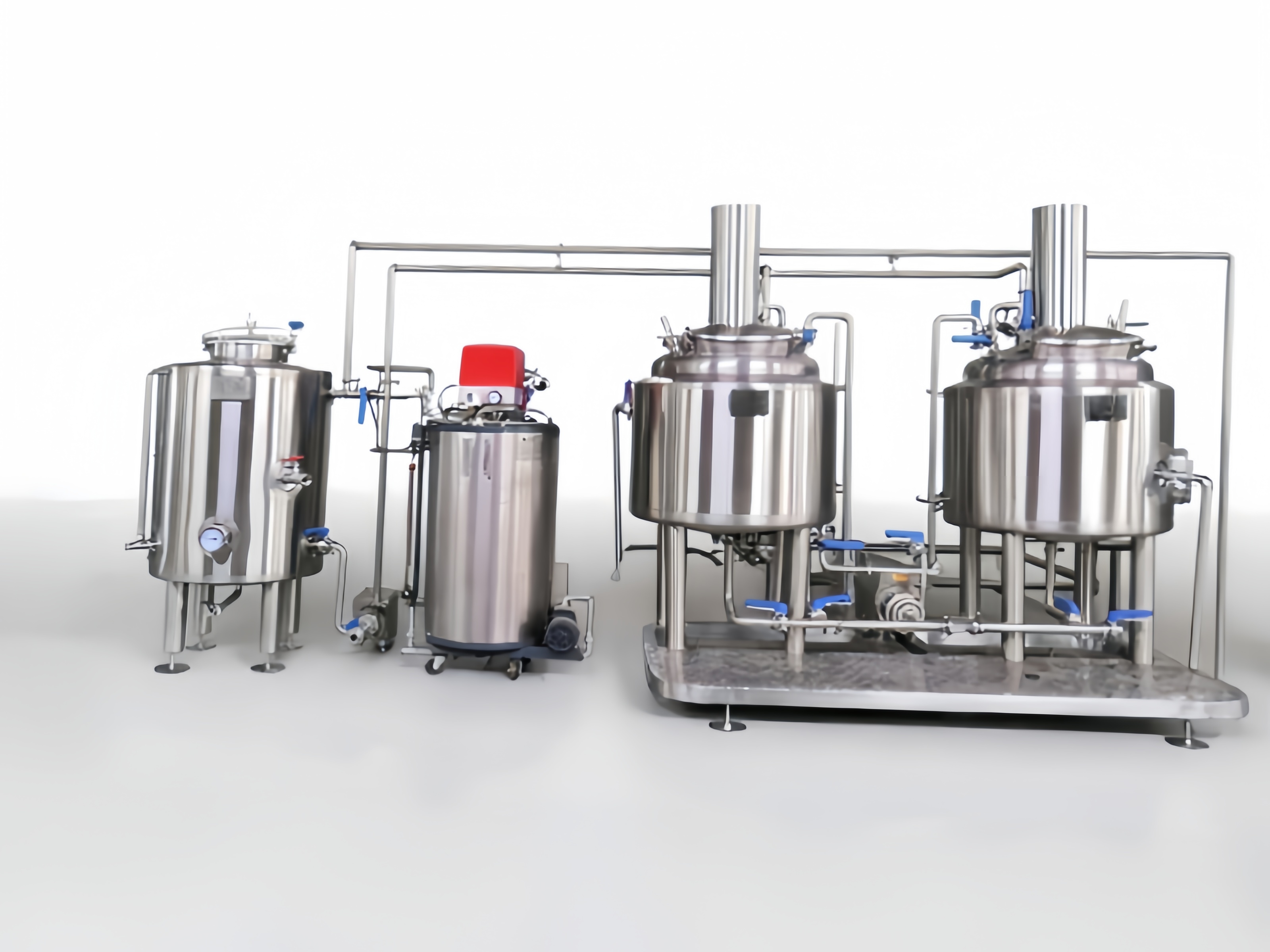

For brewpubs, startups, and recipe development, control is everything. The Cassman 100L-300L steam-heated brewhouse brings the gold standard of commercial brewing—steam heating—to a compact, efficient scale. This system is engineered to give you precise, repeatable control over every step of the brewing process.
Ultimate Mashing Accuracy: Steam allows for incredibly precise temperature control during the mash. By hitting and holding exact temperatures, you ensure optimal enzyme activity. This precision directly maximizes your sugar extraction, which in turn defines the final body and alcohol content of your beer.
A Superior, Scorch-Free Boil: During the boil, our steam jacket design truly shines. Steam provides consistent, evenly-distributed heat across the vessel's surface. This is critical for sterilizing the wort, extracting hop bitterness, and evaporating undesirable volatile compounds. Most importantly, it eliminates hot spots, mitigating the risk of scorching and preserving the delicate integrity of your wort.
Efficient & Integrated System: The system is paired with a compact, low-power electric steam generator. To maximize your brew day efficiency, the brewhouse also includes a Hot Liquor Tank (HLT), providing readily available hot water for sparging, cleaning, and other essential tasks.
Steam Jacket Heating: Our advanced design ensures the most uniform and gentle heating possible, protecting your wort from scorching and caramelization.
Compact Footprint: Designed with the space constraints of small breweries and brewpubs in mind.
Complete Turnkey Solution: Includes pumps, a heat exchanger, a work platform, and all necessary brewing pipelines for a plug-and-play setup.
Professional Control: Choose between user-friendly PID controllers or advanced PLC systems for full command over your brew day.
|
|

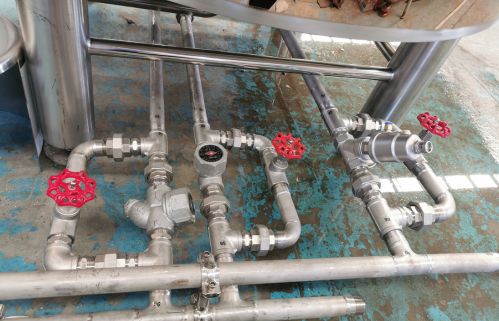

| Steam pipeline | Steam pipeline |
|
|

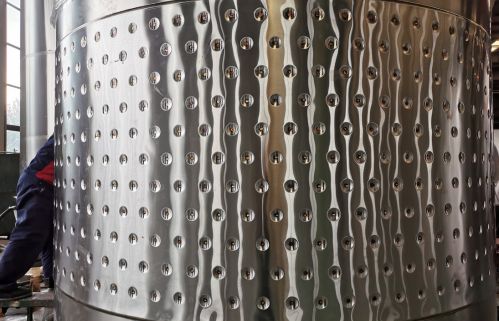

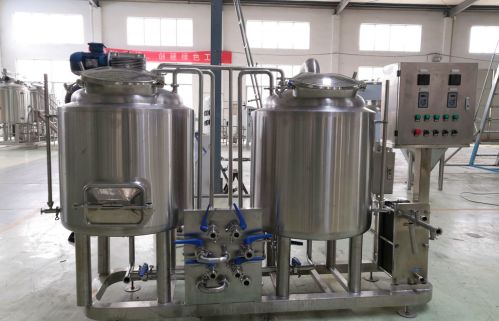

| Steam Jacket | 2bbl Steam Heated Brewhouse |
| Feature | Details |
|---|---|
| Model | CMBH-100L, CMBH-200L, CMBH-300L |
| Batch Capacity | 100L, 200L, or 300L |
| Material | Stainless Steel 304 (Optional: Copper exterior) |
| Heating Method | Steam Jacket (via Electric Steam Generator) |
| Power | 10 - 20KW |
| Voltage | 380V/3ph/50Hz, 220V/3ph/60Hz (Customizable) |
| Ceiling Height Req. | Approx. 3 Meters |
| Control System | PLC / PID |
| Included Accessories | Pump, Heat Exchanger, Work Platform, Brewing Pipeline |
Whether you're testing new recipes, training staff, or serving a dedicated taproom, the Cassman steam brewhouse provides the professional tools you need for success.
Start brewing with precision. Contact us today for a quote on your 100L-300L steam brewhouse.
