Brite tank
Cassman
The Final Touch for Perfect Beer: Clarity, Carbonation, and Conditioning
The Brite Beer Tank is where your beer achieves its final, polished character. After primary fermentation, the BBT is used to hold the beer for clarification, allowing yeast and other particulates to settle out, resulting in a crystal-clear appearance. It is here that the beer is carbonated to the precise level required for its style.
Our BBTs are engineered to maintain a stable, constant temperature, which is crucial for preventing CO2 loss and protecting the beer from oxidation. Whether you are preparing for bottling, canning, kegging, or serving directly from the tank, the Cassman BBT ensures your beer is stable, clear, and presented at its absolute best.
|
|

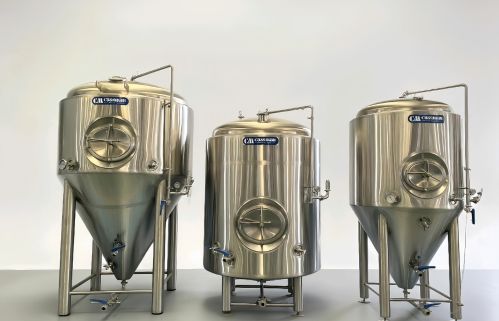

| Vertical Fv & BBT | 10BBL Brtite Tank |
|
|
| Stackable BBT | Top manway BBT |
Superior Construction & Materials:
The main body is constructed with a fully welded 304 stainless steel structure.
Features a robust 3mm thick inner shell and a durable 2mm thick outer shell.
The interior is polished to a sanitary finish of 0.2-0.4μm, leaving no dead corners for contaminants to hide.
High-Efficiency Thermal Design:
Insulated with high-density polyurethane to guarantee a constant tank temperature, preserving carbonation and preventing flavor degradation.
Precise Temperature & Quality Control:
Purpose-built to filter residual yeast and impurities from the fermented beer, storing the "brite" beer until it's ready for packaging.
An integrated cooling jacket works in synergy with the insulation to maintain a stable, cool environment, protecting the beer from oxidation.
Customizable & Easy to Maintain:
Tank dimensions and specifications are fully customizable to meet your specific production needs and space constraints.
Designed for easy cleaning via manual methods or a full CIP (Clean-In-Place) system. Horizontal tank orientations are available for spaces with height limitations and for easier maintenance.
Below is a list of our standard model configurations. All dimensions can be customized to your requirements.
| No. | Net Capacity (L) | Diameter (mm) | Height (mm) | Cooling Area (m²) | Manway Location |
|---|---|---|---|---|---|
| 1 | 100L | 660 | 1500 | 0.6 | Top Manway |
| 2 | 200L | 660 | 1900 | 0.9 | Top Manway |
| 3 | 300L | 760 | 2200 | 1.3 | Top Manway |
| 4 | 500L | 860 | 2500 | 1.9 | Side Manway |
| 5 | 800L | 1200 | 2600 | 2.4 | Side Manway |
| 6 | 1000L | 1060 | 2600 | 2.7 | Side Manway |
| 7 | 1500L | 1260 | 3300 | 3.0 | Side Manway |
| 8 | 2000L | 1360 | 3500 | 3.6 | Side Manway |
| 9 | 2500L | 1660 | 3300 | 3.9 | Side Manway |
| 10 | 3000L | 1760 | 3800 | 4.6 | Side Manway |
| 11 | 4000L | 1760 | 3900 | 6.2 | Side Manway |
| 12 | 5000L | 2160 | 3900 | 7.5 | Side Manway |
| 13 | 10000L | 2200 | 6000 | 14.3 | Side Manway |
Elevate the quality, clarity, and consistency of your final product with a Cassman Brite Beer Tank.
Contact us today to discuss your specific requirements and receive a customized quote from our engineering team.
