CMBH-30BBL
Cassman
Engineered for Maximum Throughput and Uncompromising Quality
For the ambitious craft brewery focused on growth and consistency, the Cassman 30BBL 4-Vessel Brewhouse offers the power and flexibility to meet market demand. By separating the four key brewing stages—mashing, lautering, boiling, and whirlpooling—into dedicated vessels, this system eliminates bottlenecks and allows for continuous brewing, significantly boosting your daily output.
Powered by efficient steam heating and managed by a sophisticated PLC or PID control system, this brewhouse provides the precise control necessary to produce consistently excellent beer. As seen in our YouTube Showcase, every component is built for durability, ease of use, and sanitary operation. From the automated grain-out process to the VFD-controlled pumps and agitators, this system is engineered to elevate your brewing operations.
Optimized for High Throughput: The dedicated 4-vessel design allows for simultaneous brewing processes (e.g., mashing the next batch while the previous one is boiling), dramatically increasing production capacity.
Efficient & Powerful Steam Heating: Steam-jacketed Kettle, Whirlpool, and Hot Liquor Tank provide rapid, even heating for a vigorous boil, precise temperature maintenance, and superior energy efficiency.
Advanced Automation & Control: Choose between semi-automatic or fully automatic control systems featuring reliable Siemens PLC or Schneider PID components. VFD controls for all pumps, rakes, and agitators ensure precise management of your entire process.
Robust Construction & Sanitary Design: Built with high-quality 304 or 316 stainless steel. The system features sanitary centrifugal pumps, Tri-Clamp fittings, and CIP spray balls in every tank for easy, effective cleaning.
Automated Lautering & Grain Out: The Lauter Tun is equipped with a VFD-driven rake system, anti-rinser, and an automatic spent grain outlet, streamlining the most labor-intensive parts of the brew day.
Complete Turnkey Solution: Includes all necessary auxiliary equipment such as a non-slip work platform, high-efficiency heat exchanger, hop back, wort aeration station, and all interconnecting piping and valves.
|
|

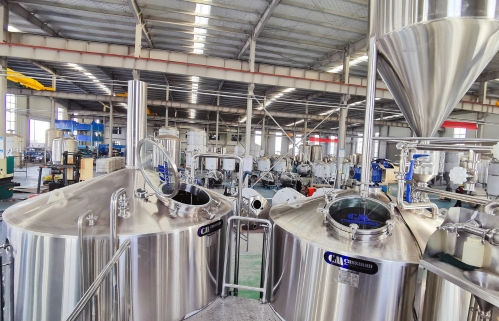

| 30BBL 4 Vessels Brewhouse | 30BBL 2 Vessels Brewing System |
|
|

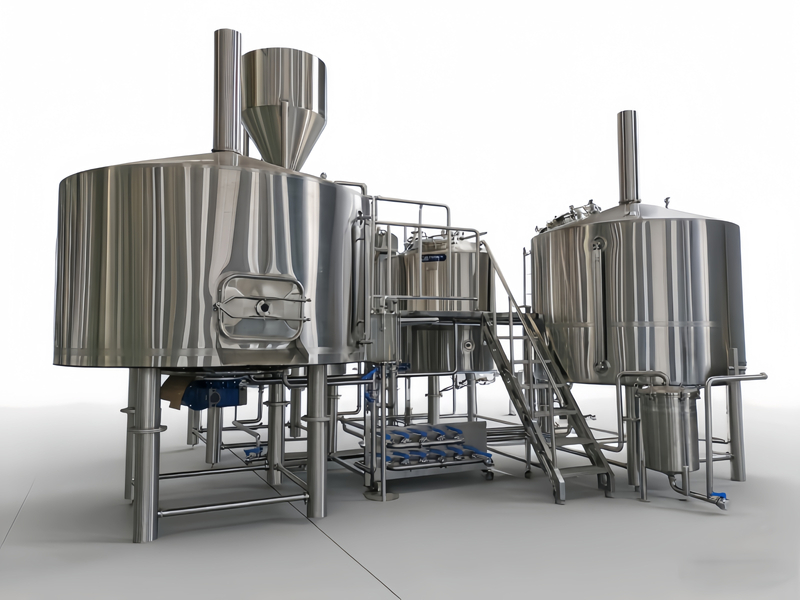

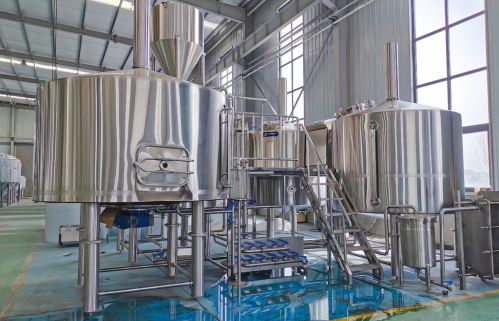

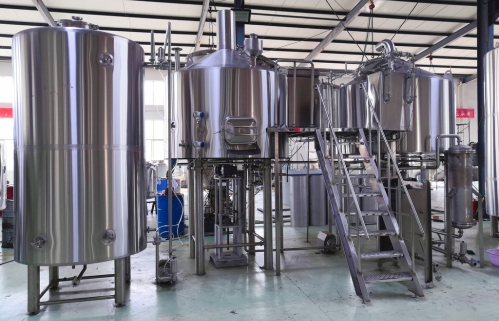

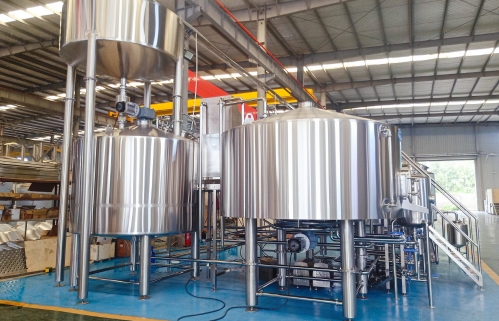

| 30BBL Brewhosue in USA | 30BBL 2 Vessels Brewhouse in Canada |
| Parameter | Details |
|---|---|
| Model | CMBH-30BBL |
| Capacity | 30BBL (3510L) / batch |
| Material | Stainless Steel 304 / 316 |

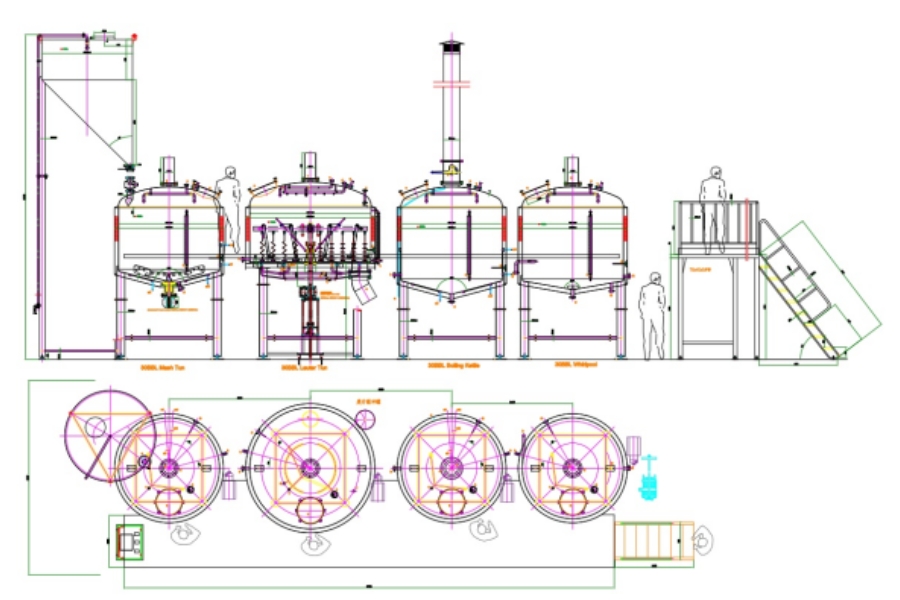

| Combination | Mash Tun, Lauter Tun, Kettle Tun, Whirlpool Tank |
| Heating Method | Steam Heating |
| Application | Large Craft Breweries |
| Automation | Semi-automatic / Fully automatic |
| Control System | PLC Siemens / PID Schneider |
| Voltage | 380V, 3-phase/50HZ; 220V, 3-phase/60HZ (Customized) |
| Component | Specifications |
|---|---|
| 30bbl Mash Tun | 30BBL capacity, 25% head space, VFD-Agitator & motor, CIP spray ball, Circulation port. |
| 30bbl Lauter Tun | 30BBL capacity, 25% head space, False bottom, VFD-Rake & motor, Automatic spent grain outlet, CIP spray ball, Wort collect rings, Anti-Rinser. |
| 30bbl Kettle Tun | 30BBL capacity, 30% head space, Steam heating with insulation, Steam chimney, Tangential inlet for whirlpool. |
| 30bbl Whirlpool | 30BBL capacity, 30% head space, Steam heating with insulation, Steam chimney, Tangential inlet. |
| 60bbl HLT | 7000L capacity, 15% head space, Steam heating with insulation, CIP spray ball, Level gauge, Hot water recycling, Overflow port. |
| Component | Specifications |
|---|---|
| Work Platform | Non-slip Work Platform with integrated stairs and railings. |
| Pumps & Piping | Sanitary Centrifugal Pumps [LYSF] with VFD control, full Sanitary Piping, Valves, and Fittings. |
| Heat Exchanger | 35M⊃2; High-Efficiency Plate Heat Exchanger [NANHUA] for rapid wort cooling. |
| Process Additions | Hop Back, Wort Aeration Station, Yeast Feeder. |
| Brewhouse Control | Central control panel with Pump on/off (VFD), Rake/Agitator motor on/off (VFD), Temperature display, and Auto/Manual heating control for all tanks. |
Ready to scale your production and meet the demands of your market? The Cassman 30BBL 4-Vessel brewhouse is your foundation for success.
Contact us today for a detailed P&ID, a customized quote, and an expert consultation on your brewery expansion project.
