A brewery can have the right brewhouse, the right fermenters, and a solid production plan, but if the glycol chiller is undersized, temperature control problems can quickly affect the entire cellar. Fermentation quality depends heavily on stable cooling performance, and that makes glycol sizing one of the most important — and most frequently underestimated — parts of brewery planning.
Many brewery owners ask the same basic question: What size glycol chiller do I need for my brewery? The challenge is that there is no single universal answer. Chiller size depends on tank count, tank size, fermentation timing, crash cooling expectations, ambient conditions, insulation quality, and future expansion needs.
This guide explains the main factors that influence glycol chiller sizing, common planning mistakes, and how breweries can think about cooling capacity in a more practical way.
A glycol system is the cooling backbone of the brewery cellar. It helps control fermentation temperature, supports crash cooling, and protects beer quality by keeping process temperatures stable and repeatable.
When the chiller is properly sized, the brewery gains:
more reliable fermentation control
better product consistency
smoother cellar scheduling
reduced stress during peak cooling periods
stronger readiness for production growth
When the chiller is undersized, the problems tend to appear quickly:
tanks cool too slowly
fermentation temperature becomes harder to manage
crash cooling takes longer than planned
multiple tanks competing for cooling create instability
production flexibility drops
In short, a glycol chiller is not a side accessory. It is a core production utility.
For a wider look at how cooling fits into brewery infrastructure, our article How to Plan Brewery Utility Requirements: Power, Water, Steam, and Glycol Basics provides a broader utility planning framework.
One of the biggest mistakes in brewery planning is choosing a glycol chiller based only on rough tank volume or on what “seems typical” for a certain brewery size.
That approach can be risky because cooling load is created by how the tanks are used, not just how large they are.
A brewery with a modest number of tanks may still require significant cooling capacity if it:
runs frequent fermentation cycles
crash cools aggressively
has warm ambient conditions
operates multiple tanks simultaneously
plans future tank additions
On the other hand, a brewery with similar tank volume but less demanding turnover may need a different sizing approach.
The key idea is simple:
You size the glycol chiller for the actual cooling demand of the system, especially during peak load periods.
Let’s break down the variables that matter most.
The more vessels connected to the glycol loop, the greater the potential cooling load.
This includes:
unitanks
fermenters
bright beer tanks
sometimes supporting heat exchanger or process cooling applications, depending on system design
But tank count alone is not enough. Ten tanks do not all demand the same cooling load at the same time. The real question is how many vessels may call for cooling simultaneously.
This is why chiller sizing should be considered together with cellar planning. Our article How Many Fermenters Does a Brewery Need? A Practical Planning Guide helps explain that part of the picture.
Larger tanks generally create larger cooling demands, especially during active fermentation and crash cooling.
Important considerations include:
working volume of each vessel
total connected volume in the cellar
whether tanks are same-size or mixed-size
whether double batches fill larger tanks
A brewery with fewer large tanks may behave very differently from one with many smaller tanks.
During active fermentation, yeast generates heat. This heat must be removed to maintain target fermentation temperature.
That means the glycol system is not just cooling beer after the fact. It is continuously removing process heat while fermentation is happening.
The amount of heat load depends on:
beer style
fermentation activity
batch size
fermentation temperature target
number of tanks fermenting at once
This is one reason glycol sizing is much more than “cold storage math.”
Crash cooling is often one of the highest-demand moments for the glycol system.
If multiple tanks are crash cooled within a short period, the chiller may face a major short-term cooling peak. A system that seems adequate during normal fermentation control may struggle badly during these periods.
Crash cooling demand depends on:
number of tanks crash cooled at once
tank size
starting and target temperature
desired cooling speed
ambient conditions
Breweries that need tight scheduling flexibility should pay special attention here.
The warmer the environment around the tanks and piping, the harder the cooling system must work.
This is especially relevant for breweries in:
hot climates
poorly insulated buildings
production spaces with high daytime temperatures
mechanical areas with weak ventilation
The chiller is not working in a laboratory fantasy. It is working in a real building, sometimes in summer, sometimes while everyone is pretending the heat is “not that bad.”
Well-insulated tanks and properly insulated glycol piping help reduce unnecessary heat gain.
Poor insulation or long inefficient pipe runs can increase the actual cooling load and reduce system performance.
This is why glycol planning should include:
insulation quality
piping distance
loop design
pump performance
routing efficiency
A brewery that sizes the glycol system only for opening day may face avoidable upgrade costs later.
If you expect to add fermenters, bright tanks, or packaging-related cooling loads in the future, that should be considered early. It is often far easier to plan for moderate reserve capacity now than to replace major cooling infrastructure later.

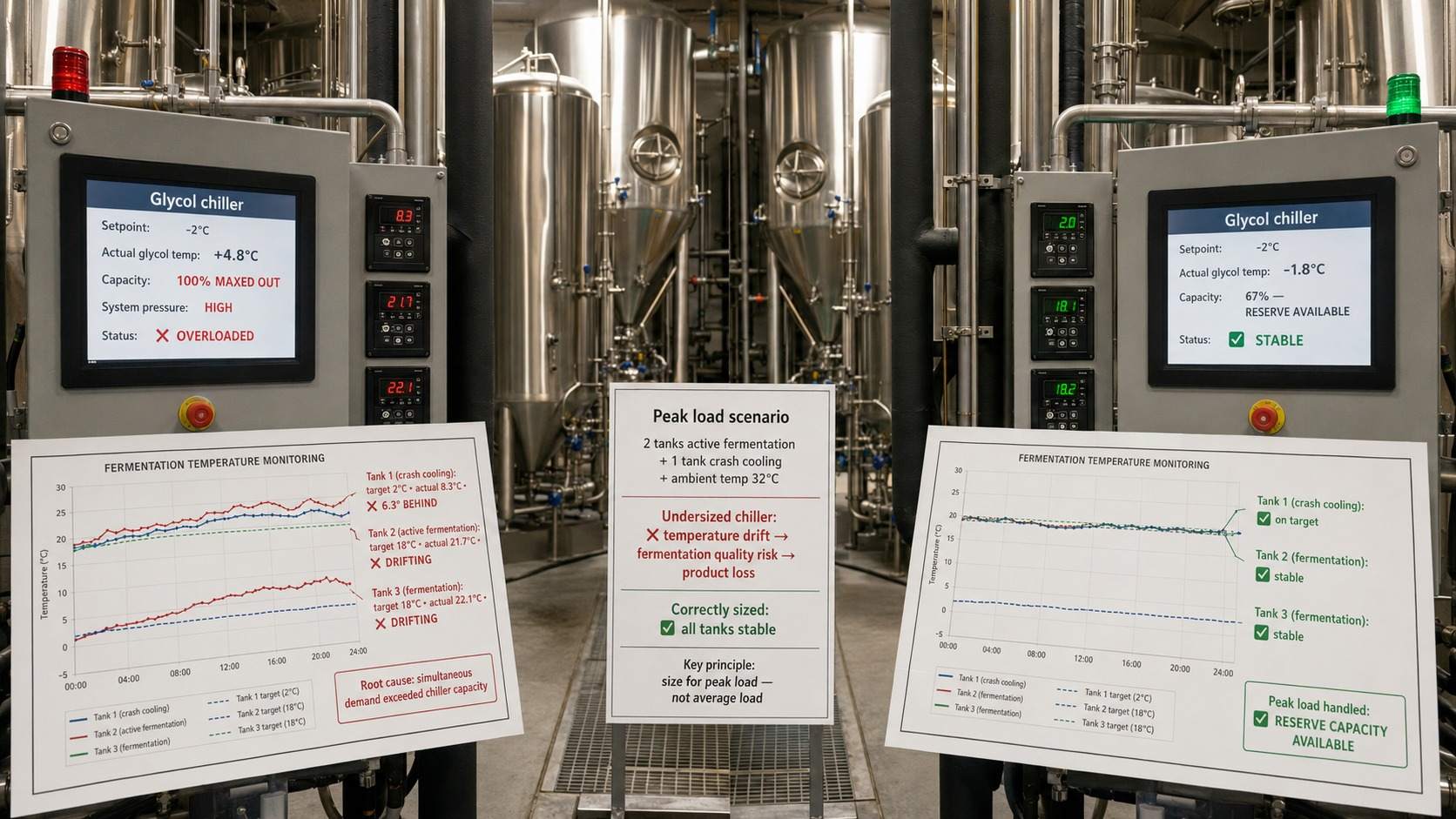

In glycol planning, average load is useful, but peak load is usually what matters most.
Why? Because the chiller must handle the moments when cooling demand is highest, not just the moments when everything is easy.
A realistic peak load scenario may include:
several tanks in active fermentation
one or more tanks crash cooling
bright tanks requiring temperature hold
warm ambient building conditions
future production pressure creating tighter turnover
If the system is sized only for average operating conditions, it may fall behind during these critical periods.
This is where many undersized systems reveal themselves.
There are several repeat problems that show up in brewery cooling projects.
Total volume is relevant, but it is not enough. It does not tell you how many tanks cool simultaneously or how aggressive the temperature changes need to be.
Some systems look acceptable on paper until crash cooling begins. Then the brewery discovers that “eventually cold” is not the same as operationally useful.
A chiller that is perfectly matched to today’s tank count may become a limit much sooner than expected.
A well-sized chiller can still perform poorly if piping design, pump selection, or insulation are weak.
Warm regions or poorly controlled spaces can add more cooling stress than some buyers expect.
Many buyers finalize tanks first and think about chiller sizing later. In reality, fermenter planning and glycol planning should happen together.
These issues are closely connected to broader startup errors covered in Common Mistakes When Starting a Brewery and How to Avoid Them.
Not all breweries use their tanks the same way, so not all breweries need the same cooling strategy.
Below is a simplified comparison.
Brewery Type | Cooling Demand Pattern | Chiller Sizing Implication |
Small taproom brewery | Moderate fermentation demand, limited simultaneous crash cooling | Often lower overall load, but still needs stable control |
Growth-stage microbrewery | More frequent brewing and tighter cellar turnover | Higher need for peak-load reliability |
Lager-focused brewery | Longer cold-side occupancy and stricter temperature management | Often requires stronger sustained cooling capacity |
Packaging-heavy brewery | Tighter release timing and less room for delay | More important to size for operational flexibility |
This comparison is simplified, but it highlights an important point: the same total tank volume can create very different cooling loads depending on how the brewery operates.
A brewery should never decide fermenter quantity first and glycol size much later, as if the cooling system will politely adapt out of courtesy.
Tank count, tank size, and glycol load are directly connected.
That means breweries should coordinate:
fermenter quantity
fermenter size
bright tank needs
crash cooling habits
glycol piping plan
reserve capacity for growth
For more detail on tank planning itself, see How to Choose the Right Brewery Fermenter Size for Your Production Plan.
A more reliable way to approach glycol chiller sizing is to follow the production logic of the brewery.
define brewhouse size and production goals
estimate fermenter count and vessel size
review beer styles and fermentation timelines
determine likely simultaneous cooling demand
consider crash cooling expectations
evaluate ambient conditions and insulation quality
review piping layout and system design
leave margin for future expansion
This sequence creates a more realistic basis for chiller selection.
There is a difference between wasteful oversizing and practical future-proofing.
A modest safety margin can help the brewery by providing:
better performance during peak loads
more flexibility for seasonal demand
easier support for future tank additions
less risk of temperature-control bottlenecks
Undersizing, by contrast, often creates recurring operational stress that is much harder to fix later.
The goal is not “largest chiller wins.” The goal is right-sized cooling with practical reserve capacity.
So, what size glycol chiller does a brewery need? The answer depends on the brewery’s real cooling load — including fermenter count, tank size, fermentation heat, crash cooling demand, ambient conditions, and future growth plans.
The most important takeaway is that glycol chiller sizing should never be treated as a rough afterthought. It is a core part of brewery performance, and it should be planned together with fermentation capacity, layout, utilities, and production rhythm.
At Cassman, we believe glycol planning works best when it is integrated into the full brewery system. A well-sized chiller does more than keep tanks cold. It helps protect fermentation quality, improve production flow, and support long-term growth with fewer surprises.
