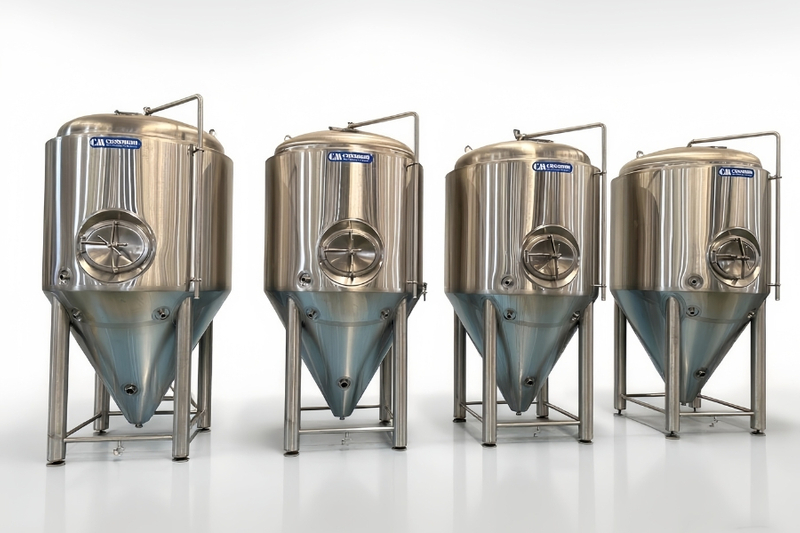

2000L Jacketed Conical Beer Fermenter

The heart of your brewery deserves the best. Our 2000L professional-grade conical fermenter is engineered for brewers who demand precision, reliability, and perfect sanitation. Built from heavy-duty SUS304 stainless steel and featuring dual-zone glycol jackets, it gives you absolute control over your fermentation profile. With a 25% headspace, a mirror-polished interior, and a full suite of pro-level fittings, this tank is ready to help you craft consistent, high-quality beer batch after batch.

Availability:



Inquire

Model:
2000L Beer Fermenter
Brand:
Cassman

Product Description

Master Your Fermentation, Perfect Your Beer

Fermentation is where the magic happens. It's the critical stage where your wort transforms into beer. The Cassman 2000L Conical Fermenter is more than just a tank; it's a precision instrument designed to give you complete command over this process. Engineered to meet European CE-PED standards, it provides the foundation of quality and consistency that every successful brewery is built on.

Key Features

Robust, Sanitary Construction:

Heavy-Duty SUS304 Stainless Steel: Built with a 3mm thick inner shell and a 2mm outer shell for superior durability and thermal stability.
Impeccable Sanitary Finish: The interior is polished to a mirror-like 0.4-0.6µm finish, eliminating hiding spots for microbes and ensuring fast, effective cleaning.

Uncompromising Temperature Control:

Dual-Zone Pillow Plate Jackets: High-efficiency cooling jackets on both the cone and the shell body allow for precise and independent temperature management.
Superior 100mm PU Insulation: Thick polyurethane insulation minimizes thermal loss, reducing energy costs and keeping your fermentation stable even in fluctuating ambient temperatures.

Designed for the Professional Brewer:

Generous 25% Headspace: Ample room to manage vigorous fermentation without messy blow-offs.
Full CIP Integration: Features a 360° coverage rotary spray ball for easy and thorough Clean-in-Place cycles.
Brewer-Friendly Fittings: Comes standard with a top dry-hopping port, a dedicated blow-off arm, a rotating racking arm for clear transfers, and a combination PVRV (Pressure/Vacuum Relief Valve).

Fully Customizable for Your Workflow:

Manway Options: Choose between a top-mounted or a front-facing shadowless manway based on your space and process needs.
Exterior Finish: Select a classic 2B mill finish or an elegant #4 brushed stainless steel finish.
Custom Ports & Fittings: Need extra ports for carbonation stones, sensors, or other accessories? We can customize the tank to your exact specifications.

Technical Specifications (2000L Model)

Parameter	Specification
Net Capacity	2,000 Liters (20HL)
Headspace	25%
Inner Shell	3mm SUS304 Stainless Steel
Outer Shell	2mm SUS304 Stainless Steel
Insulation	100mm Polyurethane
Cooling Jackets	Pillow Plate on Cone & Shell
Design Pressure	15 PSI (1 Bar)
Interior Finish	Sanitary Polish to 0.4-0.6 µm
Dimensions (D×H)	1360 mm × 3500 mm
Cooling Area	3.6 m²
Fittings	PVRV, CIP Spray Ball, Racking Arm, Sample Valve, Dry Hop Port, Blow-Off Arm

Available in a Full Range of Sizes

From pilot batches to full-scale production, we have a fermenter to match your ambition.

Net Capacity	Diameter (mm)	Height (mm)	Manway
100L	660	1500	Top
500L	860	2500	Side
1000L	1060	2600	Side
2000L	1360	3500	Side
5000L	2160	3900	Side
10000L	2200	6000	Side
...and other sizes available upon request.

Build Your Brewery on a Foundation of Quality

Invest in a fermenter that works as hard as you do.

Contact us today for a detailed quote and to start designing the perfect tanks for your brewery!
