Stackable tank
Cassman
Grow Your Production Upwards, Not Outwards.
Is your brewery's growth limited by your floor space? It's time to look up. Our Stackable Fermenters are intelligently designed to harness your building's vertical space, a resource that often goes unused. This system allows you to place two fully functional fermentation or conditioning tanks in the same footprint that a single tank would occupy.
Cassman has engineered these tanks not just for efficient stacking but also for uncompromising functionality and accessibility. Each tank in the stack operates as an independent vessel, giving you the flexibility to ferment different beers or run different schedules simultaneously.
We understand that ease of use is critical. That’s why our stacked tanks feature custom-designed extended CIP arms, racking arms, and conveniently located side manways. This ensures that your team can easily access, operate, and clean both the upper and lower tanks without requiring special equipment or compromising on safety or sanitation protocols.

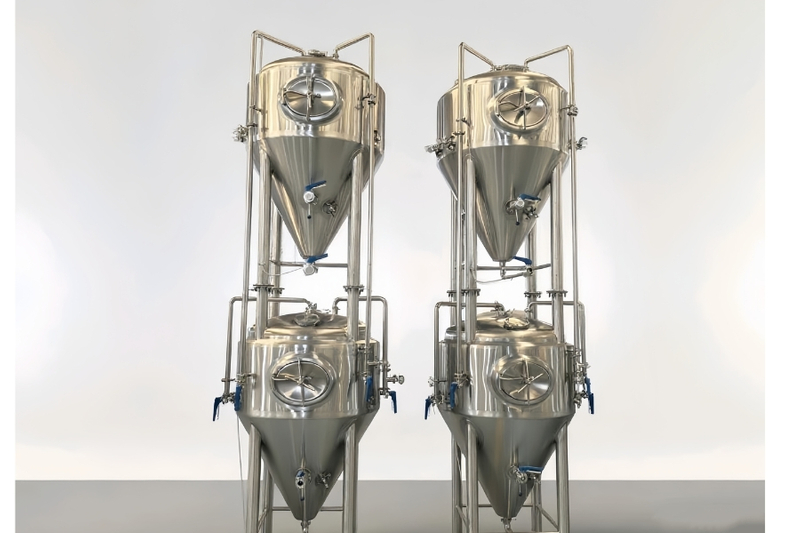

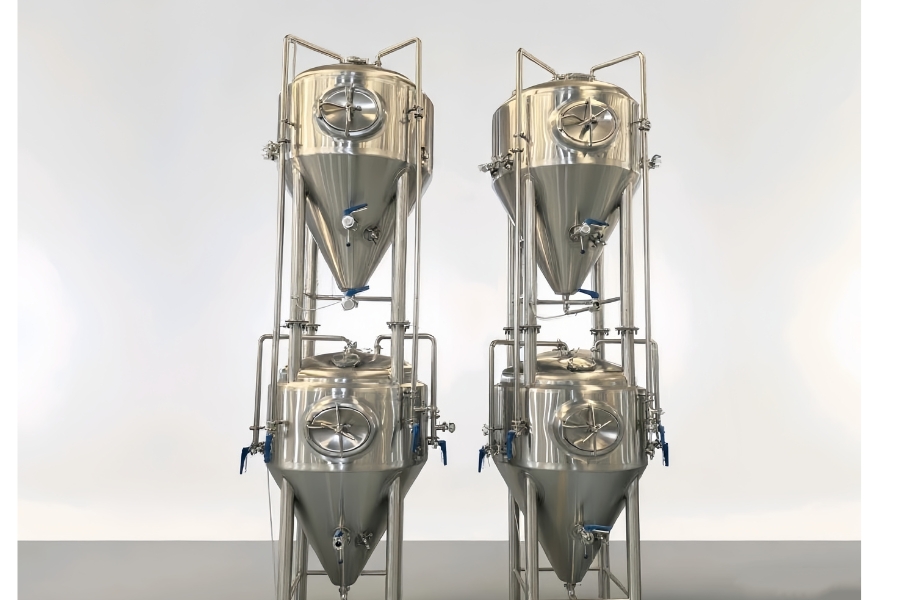

Configuration: Two identical tanks securely stacked in a custom-engineered, heavy-duty stainless steel frame.
Access: Side-opening manways on both tanks for easy ingredient additions and cleaning.
Extended Fittings: Thoughtfully designed extended CIP arms, blow-off arms, and racking arms ensure all ports on both tanks are easily accessible from the ground.
Independent Operation: Each tank is a fully-featured fermenter with its own cooling jacket, temperature control, and set of fittings.
Material: High-quality, hygienic SUS 304 Stainless Steel.
Welding: 100% TIG welded with an argon shield for sanitary, high-strength joints.
| Feature | Specification / Detail |
|---|---|
| Cooling Jacket | High-efficiency dimple plate cooling on cone and sidewall. |
| Insulation | 80mm thick polyurethane foam for excellent thermal retention. |
| CIP System | 360° coverage spray ball connected to the extended CIP arm. |
| Pressure Control | Spunding valve and pressure gauge on a dedicated blow-off arm. |
| Fittings | Includes a sanitary sample valve, PT-100 temperature probe, rotating racking arm, and a bottom drain port. |
| Pressure Rating | Standard design pressure of 0.3 MPa (3 bar) and working pressure of 0.2 MPa (2 bar). |
| Support | Integrated into a robust, custom-fabricated frame with adjustable leveling feet. |
Brewpubs with limited cellar or production space.
Urban breweries operating in narrow, high-ceilinged buildings.
Established breweries looking to add fermentation capacity without costly construction.
Pilot breweries wanting to run multiple trial batches in a small area.
Stop letting your floor plan dictate your production limits. Contact us today for a quote on a stackable tank solution tailored to your vertical space.
