One of the most common questions we get from breweries planning their setup is: "How many vessels do I really need?" It's a fair question, and honestly, the answer isn't the same for everyone. The difference between a 2-vessel and a 4-vessel brewhouse affects everything from your batch turnaround time to your labor costs to your initial investment.
Let's break down each configuration, explain the real tradeoffs, and help you figure out what makes sense for your operation.
Before we compare, let's make sure we're speaking the same language:
Vessel terminology:
Mash Tun: Where grains are steeped in hot water to extract sugars
Lauter Tun: Where sweet wort is separated from grain husks
Kettle (or Brew Kettle): Where wort is boiled with hops
Whirlpool: Optional vessel for separating hop debris after boiling
Hot Liquor Tank (HLT): Stores hot water for brewing
Cold Liquor Tank (CLT): Stores cold water for cooling
These vessels can be combined or separated in various configurations.

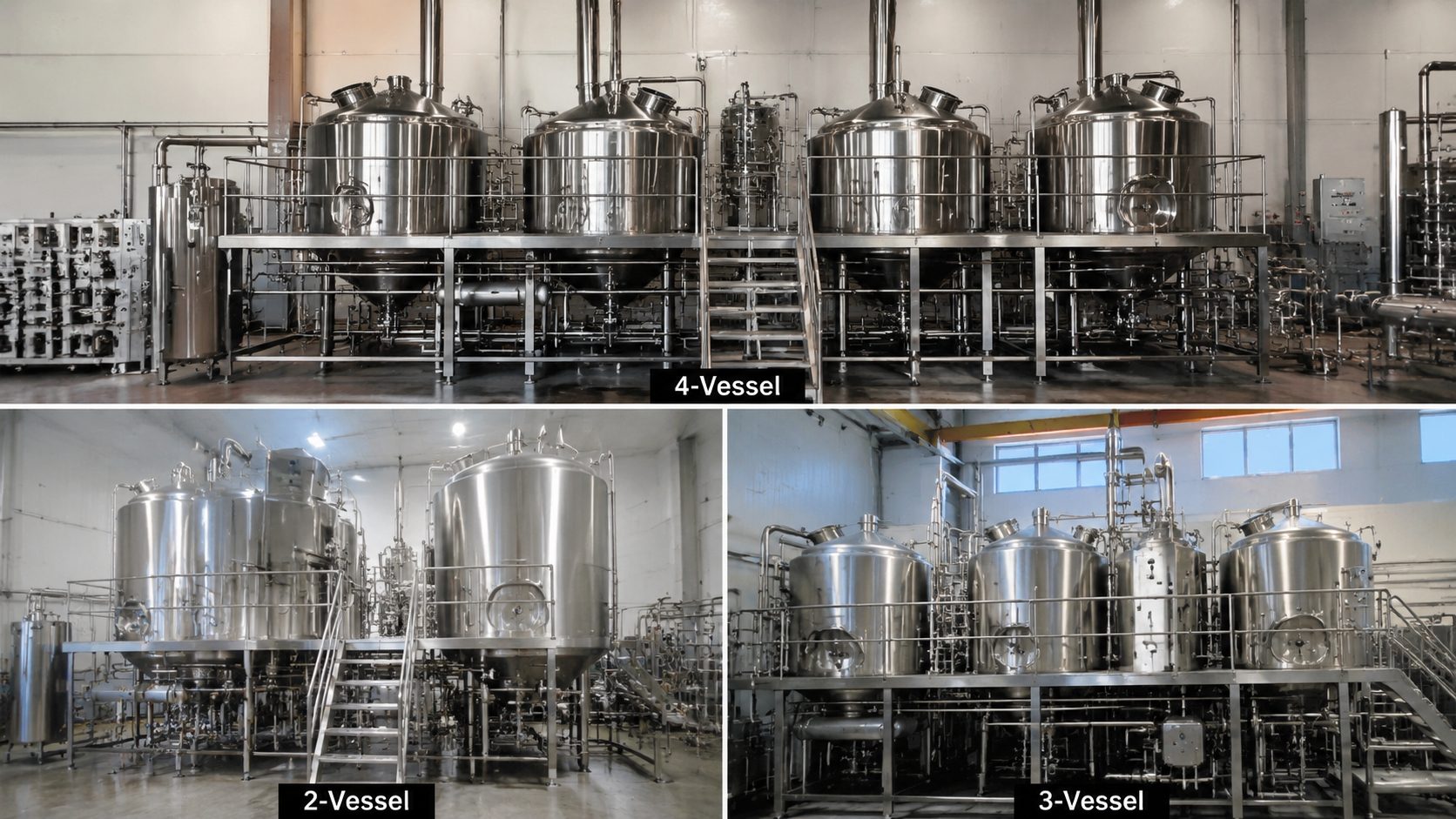

A 2-vessel system combines functions:
Configuration option A: Mash/Lauter Tun + Kettle/Whirlpool
The same vessel acts as both mash tun and lauter tun
Second vessel handles boiling and whirlpooling
Very common for smaller breweries
Configuration option B: Mash Tun + Kettle (with external lauter)
First vessel is mash tun only
Second vessel is kettle with integrated lauter deck
Still considered 2-vessel because functions are combined
Lower upfront cost: You're buying two vessels instead of three or four. This matters enormously for startups working with limited capital.
Smaller footprint: Two vessels take up significantly less floor space than larger configurations. Perfect for urban breweries or tight spaces.
Simpler operation: Fewer vessels mean fewer processes to manage. Your brewers can master the system faster.
Lower maintenance: Less equipment means lower long-term maintenance costs and fewer things that can break.
Longer turnaround between batches: After you lauter, you need to clean the combined vessel before you can start your next mash. This adds 30-60 minutes per batch.
Less flexibility: Running a step mash in a combined vessel while waiting to lauter can be challenging. Less room for complex brewing techniques.
Operational efficiency limits: While one batch is fermenting, you're doing other tasks. But if your bottleneck is brewhouse capacity, two vessels will eventually limit you.
A 2-vessel system is ideal if:
You're on a tight budget
Space is limited
Your production volume is modest (under 20-30 barrels per week)
You're primarily brewing session beers and standard styles
You value simplicity over maximum efficiency
The classic 3-vessel configuration:
Mash Tun: Dedicated for mashing
Lauter Tun: Dedicated for sparging and wort separation
Kettle: For boiling and whirlpool
Many breweries also have a separate HLT, making it effectively 4 pieces of equipment, but it's still called a 3-vessel brewhouse because those first three are the main production vessels.
Faster batch turnaround: Because you have dedicated vessels for each function, you can be lautering your current batch while your next mash is already steeping in the mash tun. This is the game-changer.
More brewing flexibility: Run step mashes without time pressure. Do multiple sparges efficiently. Brew more complex beer styles with less compromise.
Higher throughput: You can brew more batches in the same amount of time compared to a 2-vessel system.
Better lautering: Dedicated lauter tuns are designed specifically for efficient wort separation, leading to better extract efficiency.
Higher initial investment: Three purpose-built vessels cost more than combining functions.
More floor space needed: You're adding another piece of equipment, which requires room to operate around it.
More complex operation: More vessels mean more valves, more processes, and more things to learn. The learning curve is steeper.
A 3-vessel system makes sense if:
You plan to brew 30+ barrels per week regularly
You want to brew complex beer styles (step mashes, multiple sparges)
Time efficiency matters to you
You have room for the additional equipment
You can stretch your budget to include it
The full 4-vessel configuration:
Mash Tun: Dedicated for mashing
Lauter Tun: Dedicated for sparging
Kettle: For boiling
Whirlpool: Dedicated for hop debris separation
Some high-end systems even separate heating functions further. This is overkill for most breweries but makes sense at production scale.
Maximum efficiency: Each vessel does one thing perfectly. Turnaround times are minimized.
Premium quality: The best possible lautering, clearest wort, most efficient hopping. Every step optimized.
High volume capacity: With the right system design, you can brew multiple batches per shift.
Scalability: If you're planning significant growth, a 4-vessel system can grow with you.
Significant investment: Four purpose-built vessels is a major capital commitment.
Space intensive: You'll need serious floor space and ceiling height for multiple vessels.
Operational complexity: More moving parts means more training, more procedures, more potential issues.
Diminishing returns: Unless you're at serious production volumes, you probably don't need this level of optimization.
A 4-vessel system is justified if:
You're brewing 100+ barrels per week
You have very high labor costs and need to maximize efficiency
Space isn't a constraint
You're brewing premium products where every bit of quality matters
You have the capital to invest
Factor | 2-Vessel | 3-Vessel | 4-Vessel |
Initial Cost | $ | $$ | $$$ |
Floor Space | Low | Medium | High |
Batch Turnaround | 4-5 hours | 3-4 hours | 2-3 hours |
Brewing Flexibility | Limited | Good | Excellent |
Maintenance Complexity | Low | Medium | High |
Best For | Startups, small volume | Growing breweries | High-volume production |
One thing we haven't addressed: what about your Hot Liquor Tank?
In all these configurations, you'll typically have an HLT as a supporting vessel. Some breweries integrate HLT functions into their main vessels (heating water in the mash tun between batches), while others keep it separate.
For most commercial operations, we recommend a dedicated HLT. The ability to have hot water ready while you're brewing makes your process much smoother.
Here's our honest assessment based on what we've seen work:
For most startups and small breweries: Start with a well-designed 2-vessel system. You can always add vessels later as you grow. Don't over-invest in equipment before you know your actual production needs.
For growing breweries hitting efficiency limits: Upgrade to a 3-vessel system when you find yourself constantly waiting between batches or when your quality is suffering due to rushed lautering.
For serious production facilities: A 4-vessel system can make economic sense when you're brewing at scale where small efficiencies multiply into significant savings.
The key is being honest about your current situation and near-term plans, not your five-year dreams. Get the equipment that works for where you are now, with a clear path to expansion.
This is crucial: design your brewhouse with expansion in mind.
If you start with 2-vessel and might grow to 3, plan your building and utilities for that future state. Otherwise, you'll face expensive retrofits.
Similarly, if you're buying a 3-vessel system with the possibility of going 4, make sure you have space and plumbing infrastructure for that fourth vessel.
At Cassman, we help breweries think through these expansion paths. We want you to have equipment that serves you well today and can grow with you tomorrow.
Henry Chen, CEO
The "right" brewhouse configuration depends entirely on your specific situation. We've helped breweries that started with humble 2-vessel setups and grew into major production facilities, and we've seen others jump straight to complex systems that overwhelmed their operations.
There's no universal answer. But there is a right answer for you—and we're here to help you figure out what that is.
