5000L Brewhouse System
CASSMAN
For breweries ready to meet serious demand without compromising on quality, our 5000L Turnkey Brewhouse System offers the ultimate solution. This comprehensive package provides a powerful, efficient, and highly automated platform for producing consistently superior beer. We have integrated best-in-class components and intelligent design to create a cohesive system that streamlines your entire production process, from grain-in to finished beer.
|
|

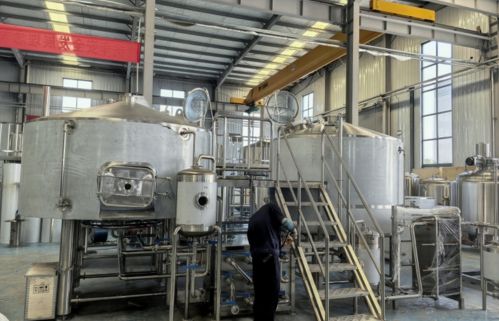

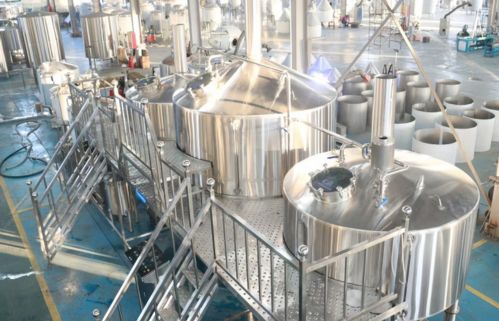

| 50HL Brewhouse for Russia Client | 5000L Brewhouse for USA client |
This turnkey system includes every major component required for professional brewing:
Grain Handling: 800-1200 kg/hr Rolling Miller, flexible auger, and 3500L grain silo.

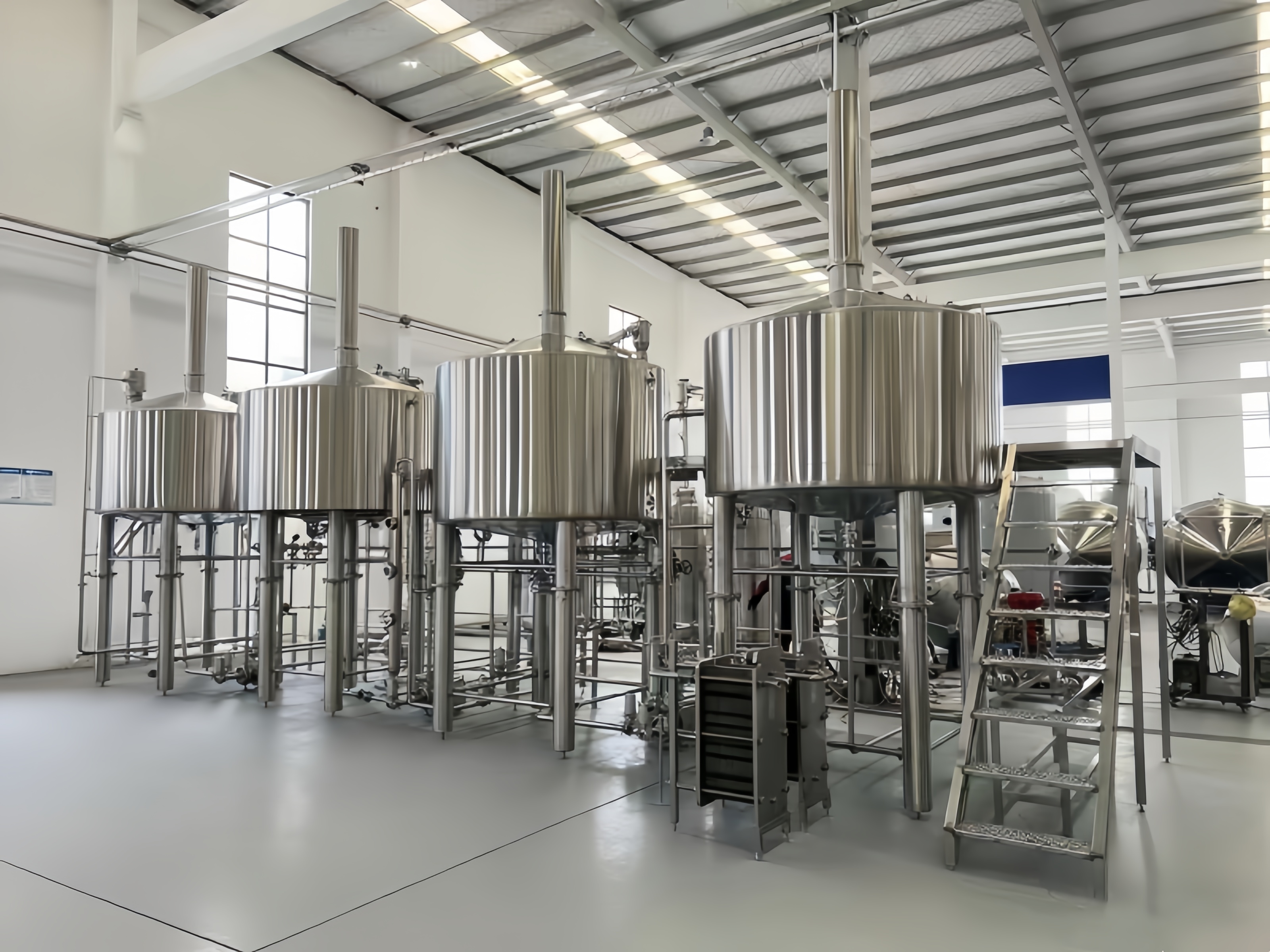

4-Vessel Brewhouse: 5000L Mash Tun, 5000L Lauter Tun, 5000L Kettle, and 5000L Whirlpool, supported by a 10,000L Hot Liquor Tank (HLT).
Cellar Tanks: A flexible range of 5000L, 10,000L, or 20,000L Fermenters and Bright Beer Tanks to match your production cycle.
Utilities & Support: A powerful 2x25HP Glycol Chilling Unit, a two-stage Heat Exchanger, and a complete 500L dual-tank CIP System.
Centralized Control: A state-of-the-art SIEMENS PLC control system with a touchscreen interface for intuitive command of the entire process.
Our 4-vessel configuration is designed for efficiency, allowing for simultaneous processes and faster batch turnarounds.
Mash Tun: Features multi-zone steam jackets on the bottom and side for even, responsive heating without scorching. The integrated grist hydrator ensures a homogenous, lump-free mash for optimal enzyme activity.
Lauter Tun: Engineered for maximum yield. The high-precision, laser-cut V-wire false bottom provides exceptional wort clarity. The motorized rake with VFD control allows for precise bed cutting, while the multi-port wort collection ring and sparging spray ring ensure high lautering efficiency.
Kettle & Whirlpool: A powerful steam-jacketed kettle achieves a vigorous, rolling boil quickly and efficiently. The dedicated whirlpool tun with a tangential inlet is optimized for perfect hot trub cone formation, resulting in clearer wort transfer to the fermenter.
At the heart of the system is the SIEMENS PLC control panel, transforming complex brewing schedules into a simple, repeatable process.
Intuitive Operation: The user-friendly touchscreen interface allows for easy monitoring and adjustment of temperatures, timers, and pump operations.
Process Repeatability: Store and execute your recipes with digital precision. The system automates temperature ramps, mash steps, and boil additions, ensuring batch-to-batch consistency.
Seamless Transitions: Effortlessly move between mash, lauter, boil, and whirlpool cycles with automated valve and pump controls, reducing manual labor and the risk of error.
This system is designed to minimize waste and reduce your operational costs.
High-Efficiency Heat Exchanger: The two-stage (2x25m²) plate heat exchanger rapidly cools your wort to pitching temperature while simultaneously recovering thermal energy by heating water for your next brew, significantly cutting down on energy consumption.
Powerful Glycol Chilling: The dual 25HP chiller unit and oversized glycol/cold water tanks provide robust and stable cooling capacity, ensuring precise fermentation temperature control—even during peak cellar activity.
Integrated CIP System: The 500L dual-tank CIP (Clean-In-Place) unit with an internal heating element allows for fast, effective, and safe cleaning cycles, minimizing downtime between batches.
Control every aspect of fermentation, conditioning, and finishing.
Fermentation & Brite Tanks: All tanks are equipped with high-efficiency glycol cooling jackets, a dedicated CIP arm, a CO2 blow-off arm, and a carbonation stone for full control over fermentation and carbonation. Features like a rotating racking arm and dry-hopping port provide maximum flexibility.
Optional Filtration Unit: Seamlessly integrate a high-performance 2000 kg/hr Candle Diatomaceous Earth (DE) Filter for producing brilliantly clear, shelf-stable beer.
Our 5000L Brewhouse System is more than just steel; it's a partnership in your brewery's success. It provides the reliable foundation you need to scale production, enhance quality, and grow your brand.
Contact our engineering team to discuss your project and receive a customized quotation for your brewery.
